TXQ3 双电源自动转换开关 ATS 16A 20A 25A 32A 40A 50A 63A

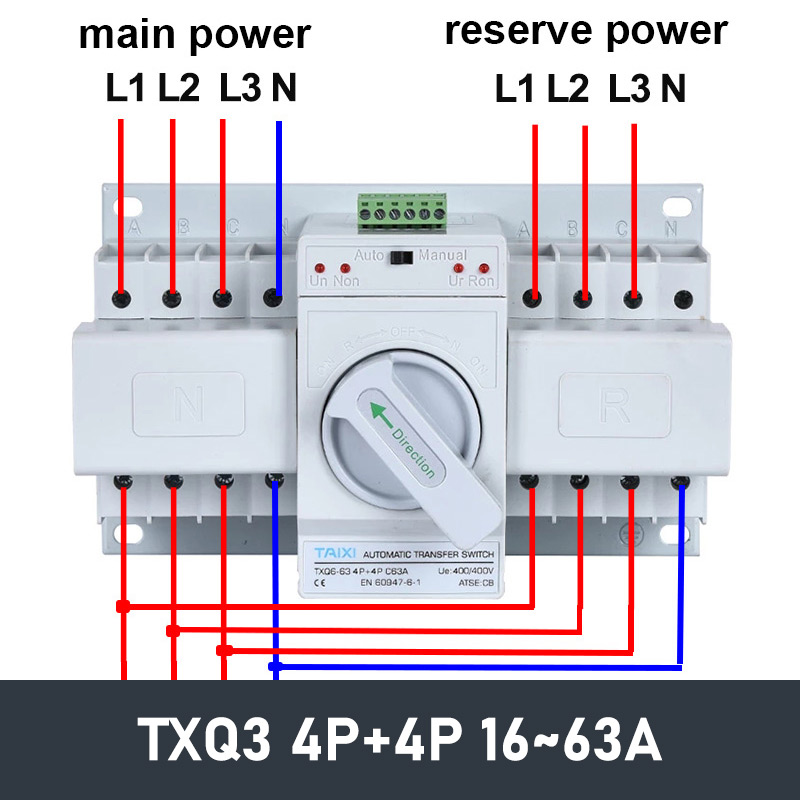

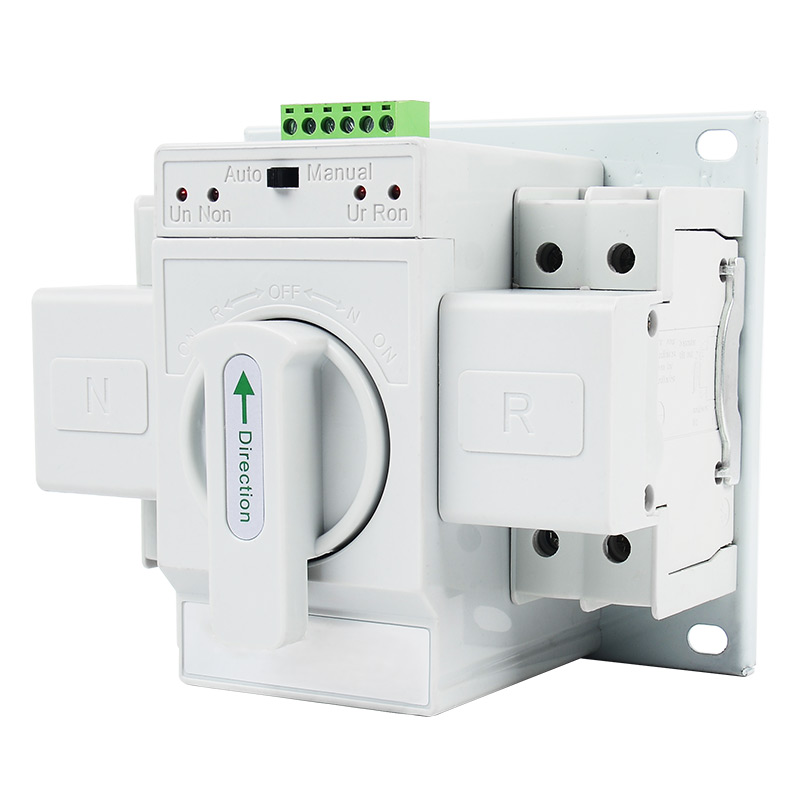

TXQ3 Dual Power Auto Transfer Switch ATS 16A 20A 25A 32A 40A 50A 63A

AC Breaker & Box

Technical Data

Download

Model	TXQ3
Meet The Standards	GB/T 14048.11
ATS Class	CB Class
Usage Categories	AC-33iB
Rated Operating Voltage Ue	AC230V/400V
Rated Operating Frequency	50Hz/60Hz
Rated Operating Current Ie	6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A 63A
Switching Control Voltage	AC230V
Rated Insulation Voltage Ui	AC690V
Switching Action Time	≤3s (Not adjustable, the factory has been adjusted)
Electrical Life	1500 Times
Mechanical Life	6000 Times
Rated Impact Withstand Voltage	8kV
Rated Short-time Making Capacity Icm	7.5kA
Rated Short-time Breaking Capacity Icn	5kA
Basic parameters of terminal type and intelligent type of TXQ3 Automatic Transfer Switch

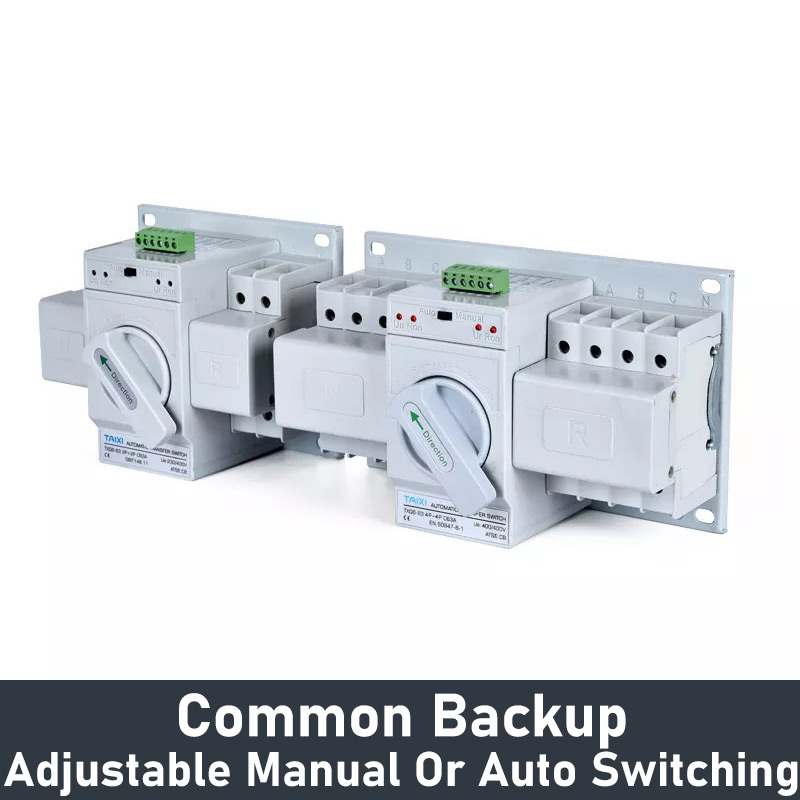

Product Model	Common Type	Intelligent Type
Installation Method	Integral Type	Integral Type
Integral Type	Automatic And Manual	Automatic manual and double breaking
Monitoring Function	Phase Failure Detection	Common power supply Three-phase undervoltage, lack phase and phase failure detection
Conversion Method	Automatic change and automatic recovery	Automatic change and automatic recovery
Fire Linkage Control	NO	DC12-24V input, double breaking (Automatic fire cut-off function)
Display Function	LED Light	LED Light
