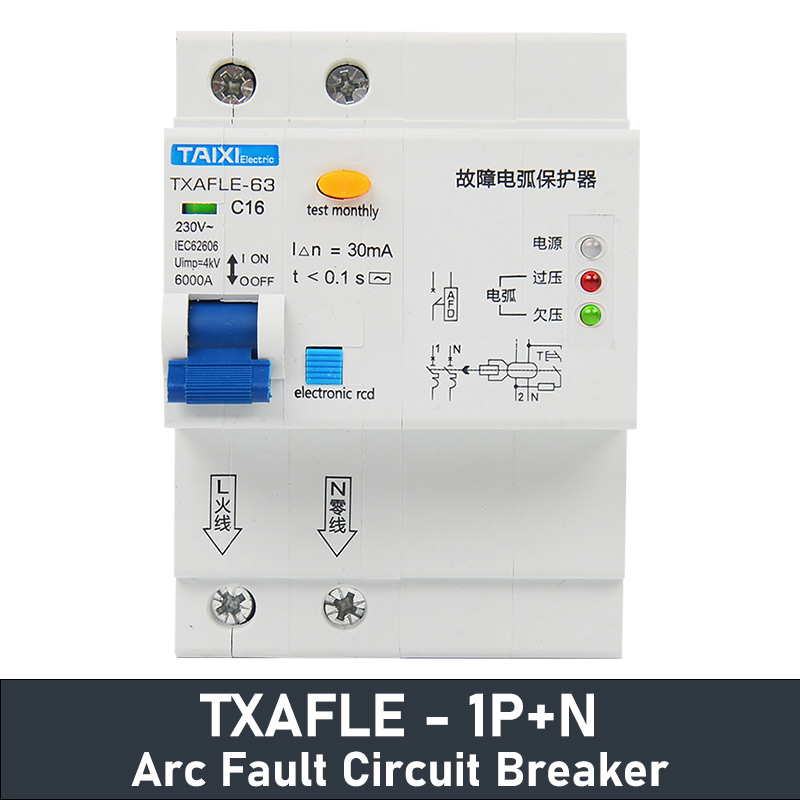

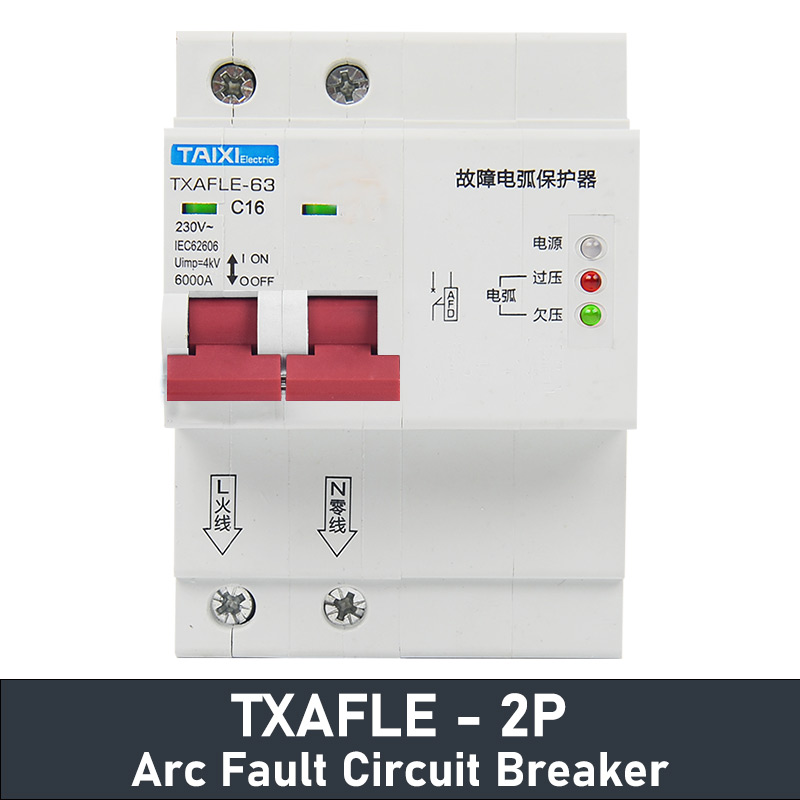

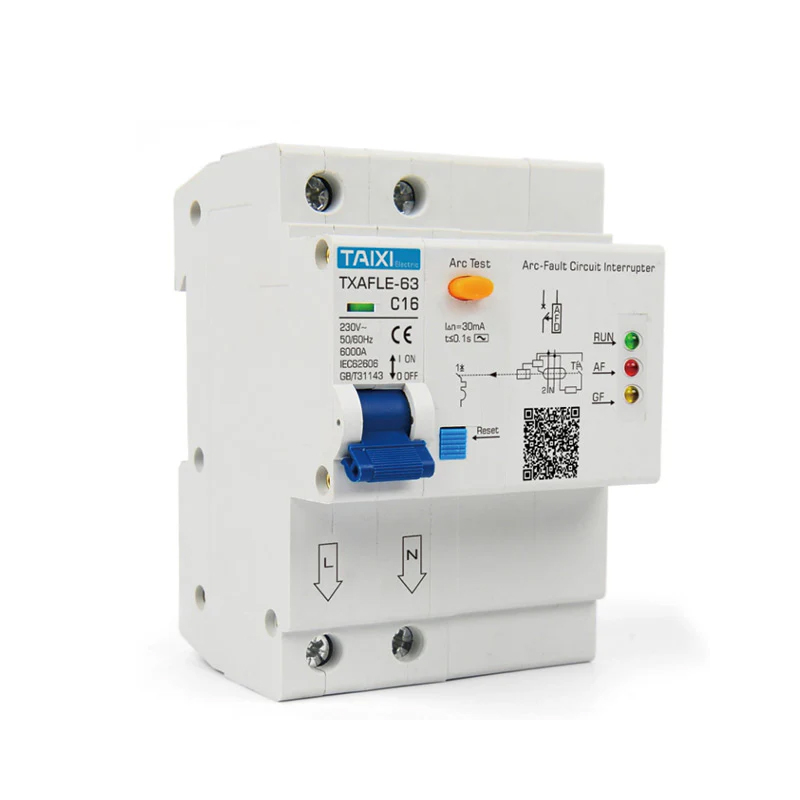

TXAFLE 电弧故障断路器

TXAFLE Arc Fault Circuit Breaker 10~63A 1P+N+LE 2P

AC Breaker & Box

Technical Data

Download

Model		TXAFLE
Rated Current		6-63A
Rated Voltage Ue		230V/400V AC
Poles		1P+N, 2P
Rated Impulse Withstand Voltage Uimp		4kV
Rated Breaking Capacity (Ics)		6kA
Rated Frequency		50Hz/60Hz
Rated Trip Current I△n		10mA ~ 50mA Adjustable
Trip Characteristics		C(5-10)In, D(10-14)In
Electrical Life		3000 Times
Mechanical Life		10000 Times
Operating Ambient Temperature		-5°C ~ +40°C
Altitude		≤2000M
Humidity		+40°C is not more than 50%, the wettest month is 90%.
External Magnetic Field		No place can exceed 5 times of the geomagnetic field. If it is installed near a strong magnetic field, additional technical requirements are required.
Position		According to the manufacturer's regulations, the tolerance is 2 anywhere.
Frequency		Reference Value 5%.
Sine Wave Distortion		Not More Than 5%.
Class Of Pollution		The standard expected for pollution level 2, i.e. generally only nonconductive pollution.
Terminal	Allow Connections Conductor Cross-Sectional Area mm²	Flexible Cord With Prefabricated End	MAX	1*4
			MIN	1*1
		Hard Wire	MAX	1*4
			MIN	1*1
		Tightening Torque N.m		1.2
