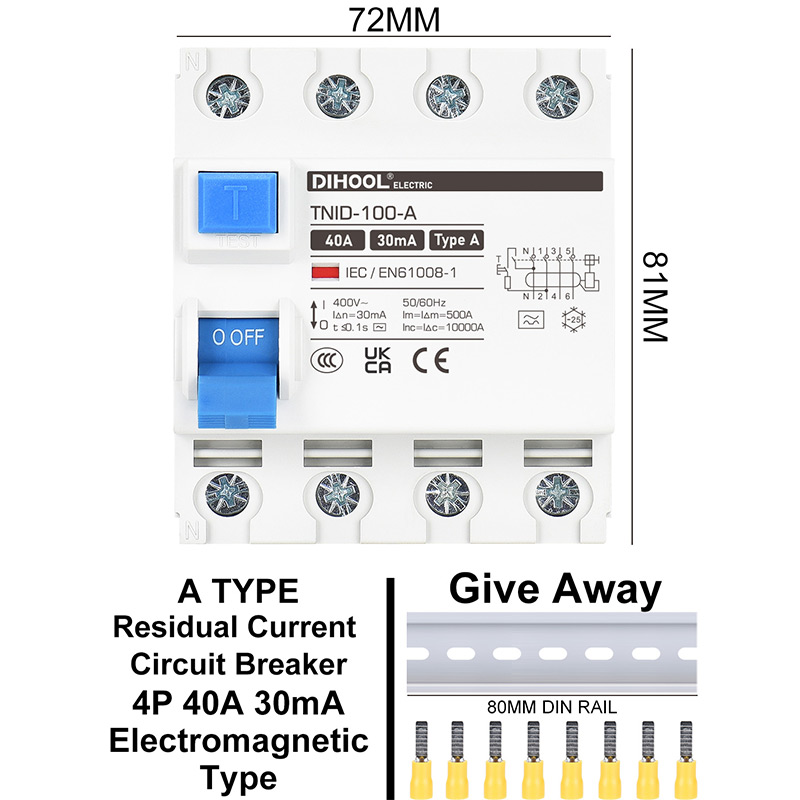

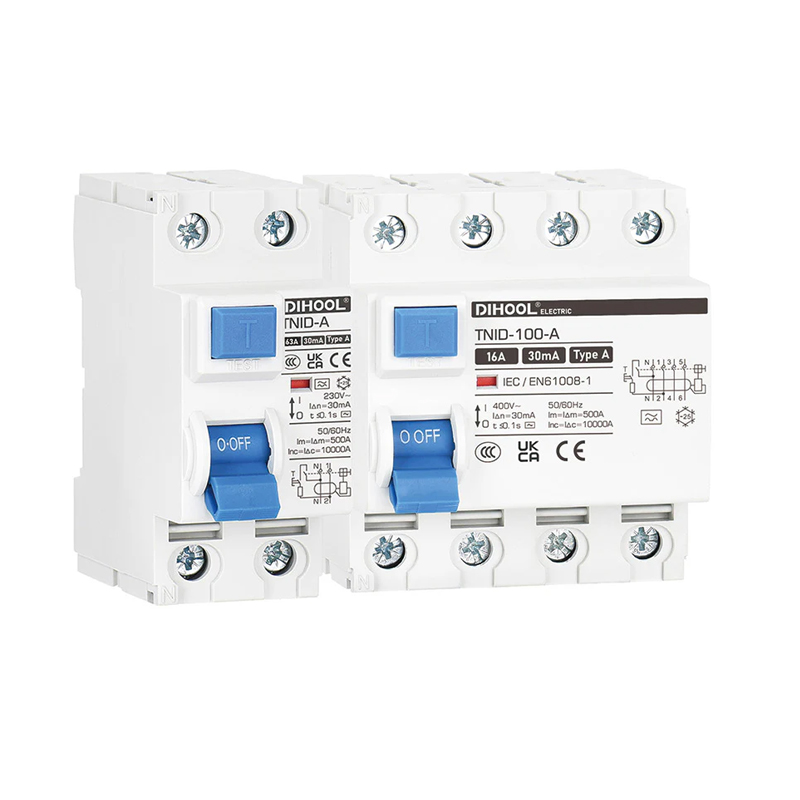

| Model | TNID | |
| Poles | 1P+N | 3P+N |
| Rated Current In | 16A, 20A, 25A,40A,63A,100A | |
| Rated Voltage Ue | 230V (1P+N), 440V (3P+N) | |
| Insulation Voltage Ui | 500V (1P+N), 900V (3P+N) | |
| Sensitivity | 15mA, 30mA, 100mA, 300mA | |

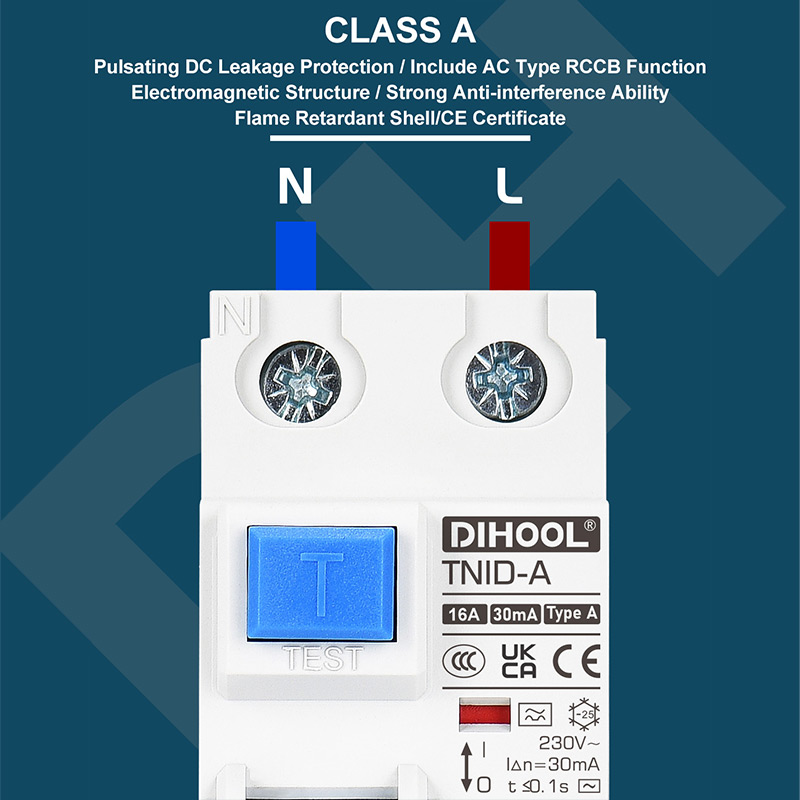

| Residual Current Working Type | Type A | |
| Rated Frequency | 50Hz / 60Hz | |
| Residual Making And Breaking Capacity IΔm | 1500A | |
| Short Circuit Current Inc=IΔc | 10000A | |
| SCPD Fuse | 10000 | |
| Rated Impulse Withstand Current 1.2/50µs | 6000V | |
| Mechanical Working Life | 4000 Times | |
| Electrical Life | 2000 Times | |
| Dielectric test voltage at and ind. Freq. for 1min | 2.5kV | |
| Pollution Degree | II | |
| Break Time Under IΔn | ≤0.1s | |
| Degree of Protection | IP20 | |

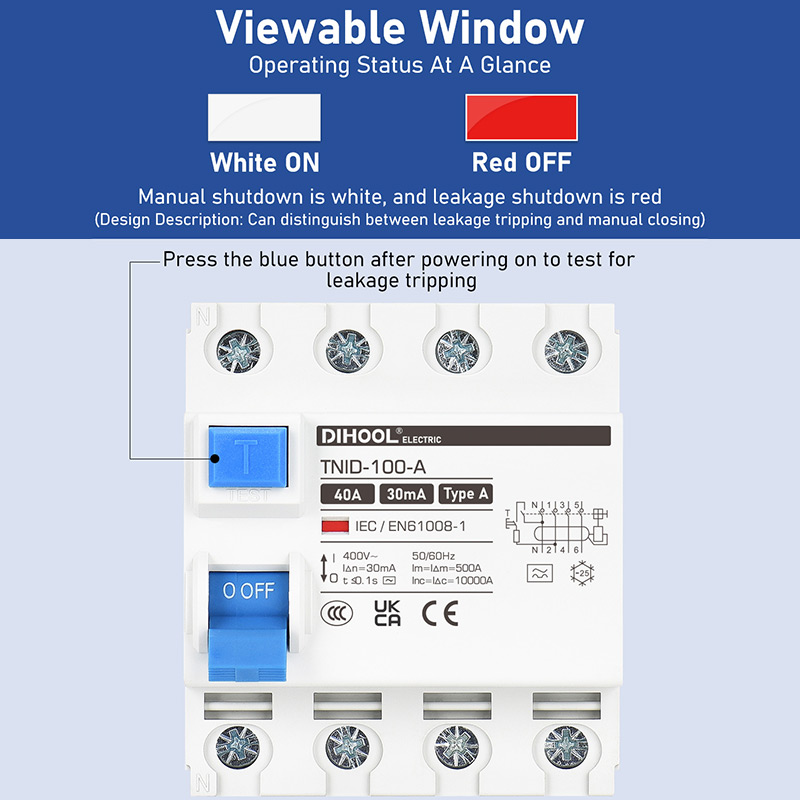

| Contact Flag Indication | White for ON, Red for OFF | |
| Residual Current Protection Type | Electromagnetic | |
| Standards | IEC/EN61008-1 IEC/EN62955 | |

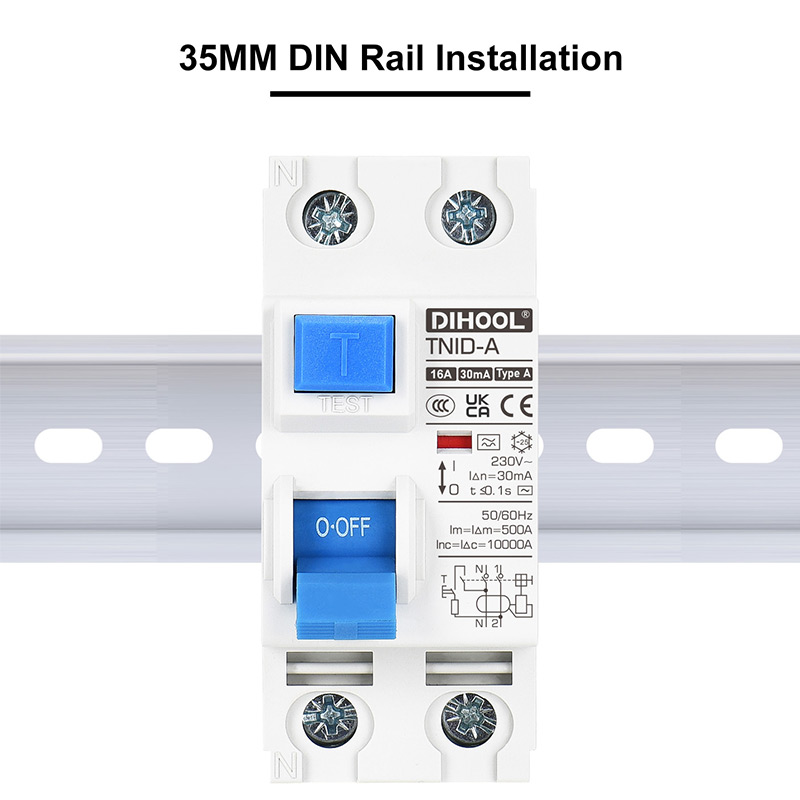

| Installation | DIN Rail | |

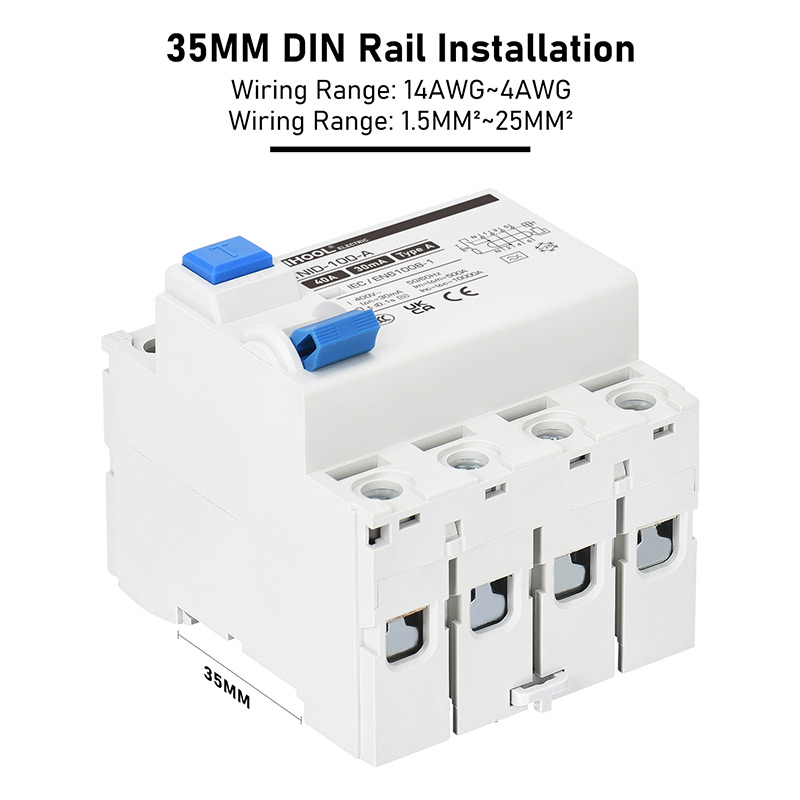

| Wiring | 1.5mm² - 25mm² | |
| Tightening Torque | 3.5*N.m | |

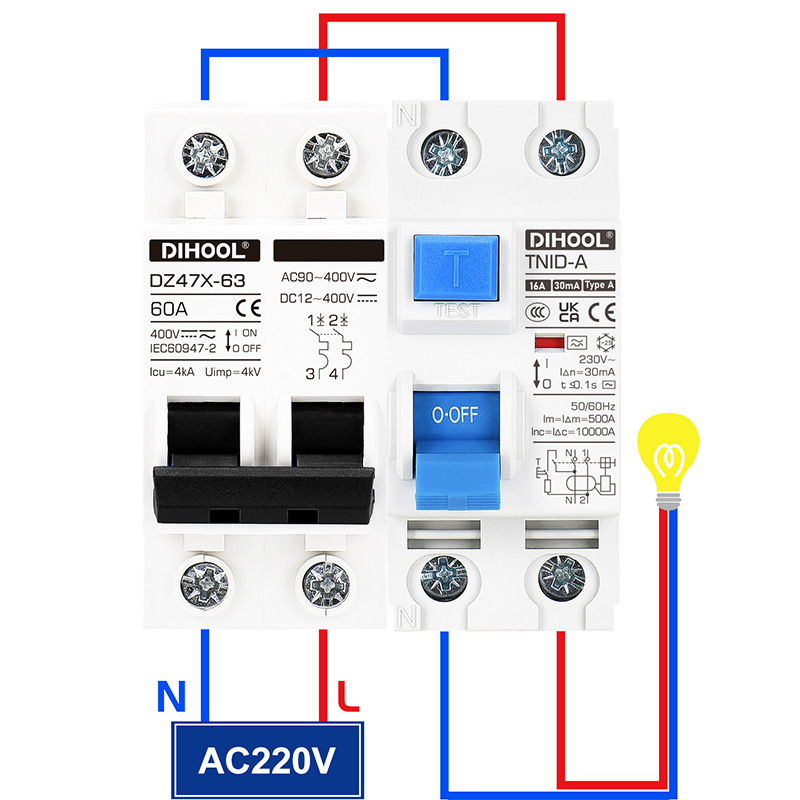

| Connection | Up input and down output | |
