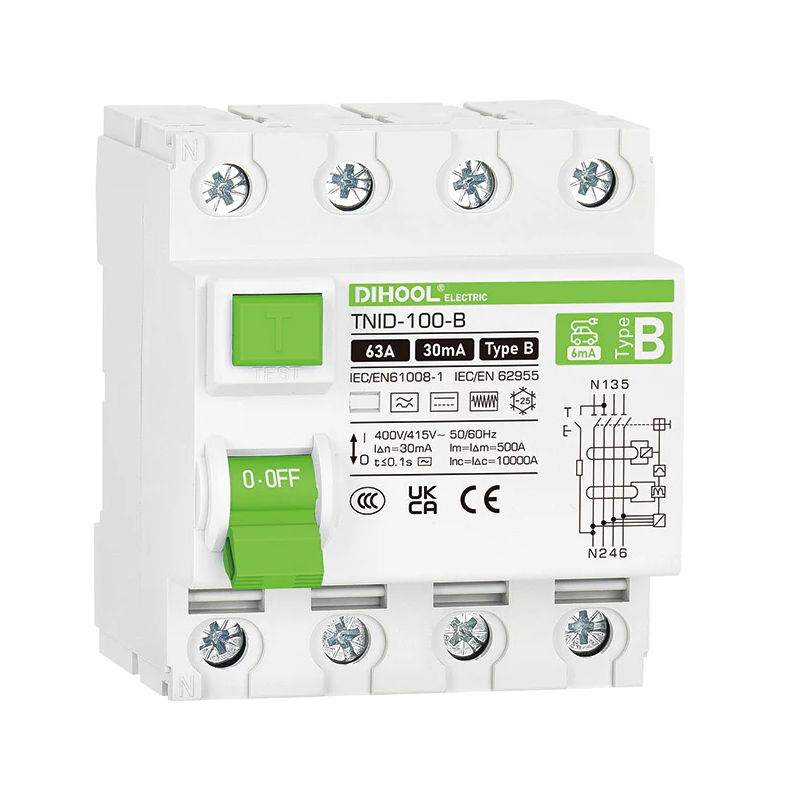

| Model | TNID-100-B |
| Poles | 4P |
| Rated Current In | 10A,16A, 20A, 25A,32A,40A,63A,80A,100A |
| Rated Voltage Ue | 440V |
| Insulation Voltage Ui | 900V |
| Sensitivity | 30mA |
| Residual Current Working Type | Type B |
| Rated Frequency | 50Hz / 60Hz |
| Residual Making And Breaking Capacity IΔm | 500A |
| Short Circuit Current Inc=IΔc | 10000A |
| SCPD Fuse | 10000 |
| Rated Impulse Withstand Current 1.2/50µs | 6000V |

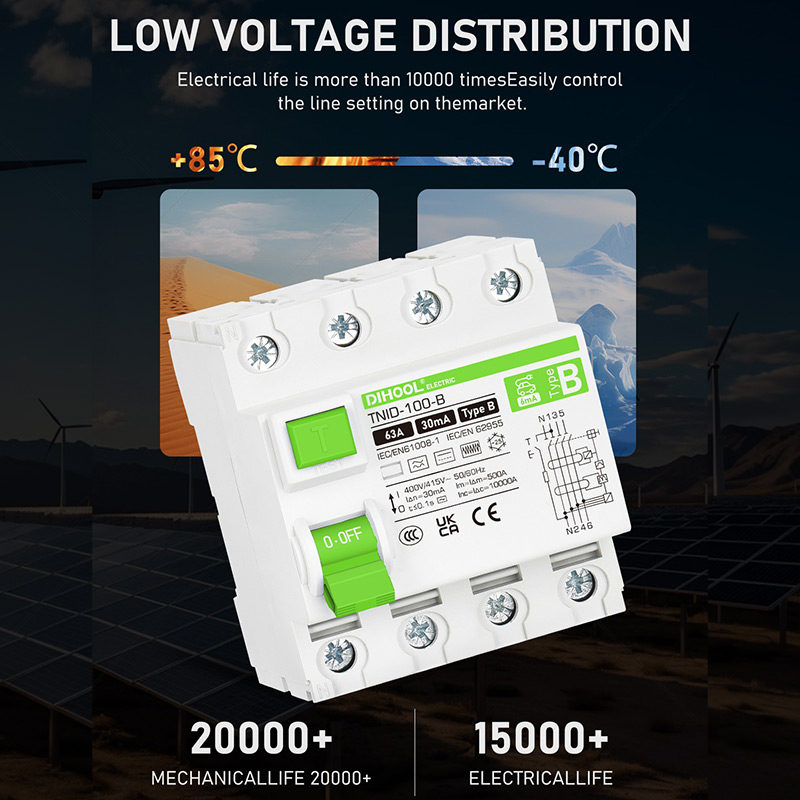

| Mechanical Working Life | 4000 Times |
| Electrical Life | 2000 Times |
| Dielectric test voltage at and ind. Freq. for 1min | 2.5kV |
| Pollution Degree | II |
| Break Time Under IΔn | ≤0.1s |
| Degree of Protection | IP20 |

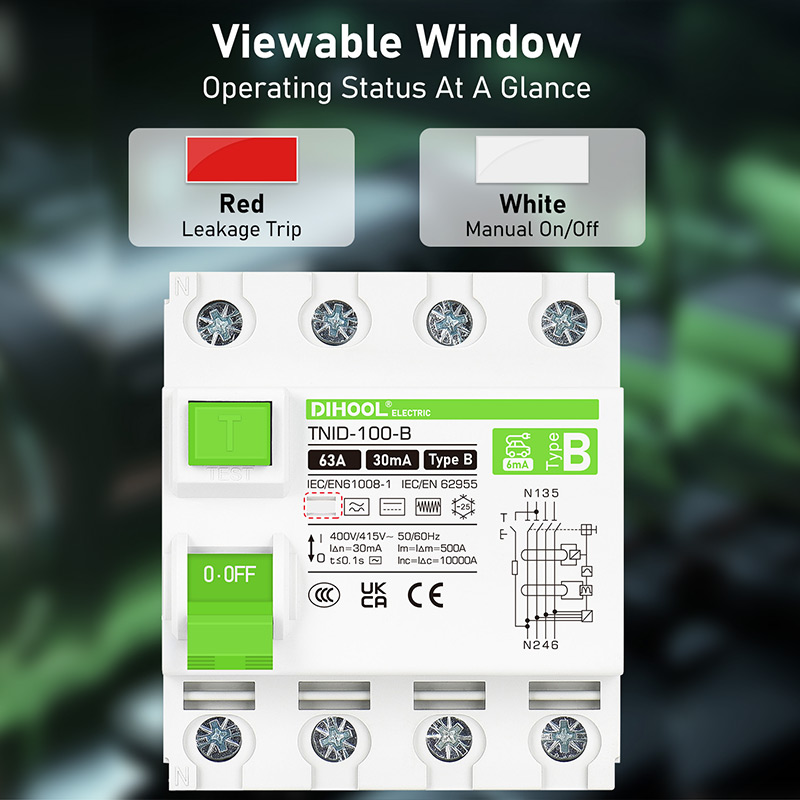

| Contact Flag Indication | White for ON, Red for OFF |
| Residual Current Protection Type | Electromagnetic |
| Standards | IEC/EN61008-1 IEC/EN62955 |
| Installation | DIN Rail |
| Wiring | 1.5mm² - 25mm² |
| Tightening Torque | 3.5*N.m |
| Connection | Up input and down output |
