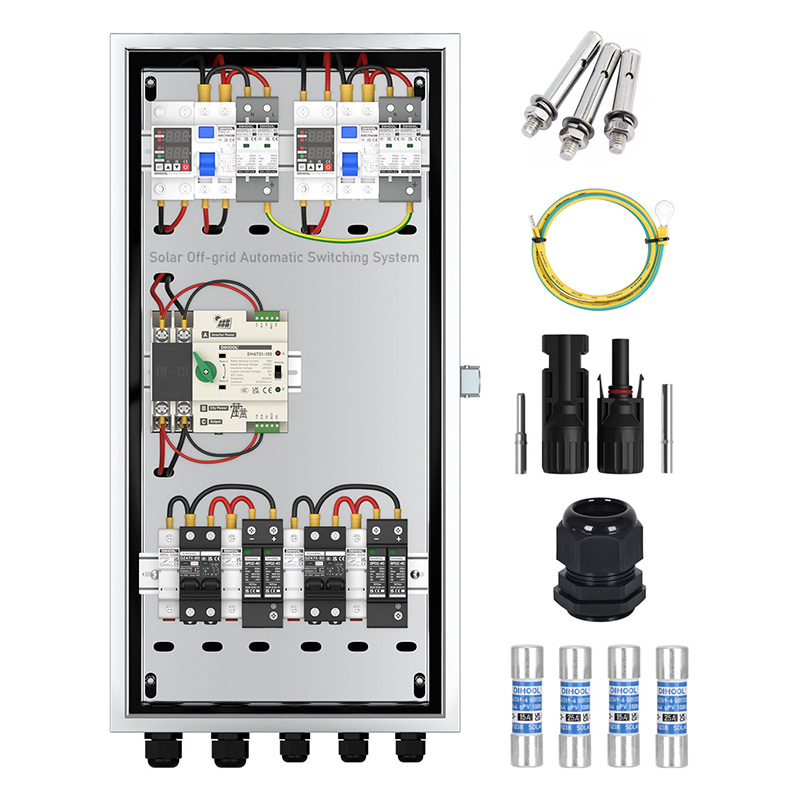

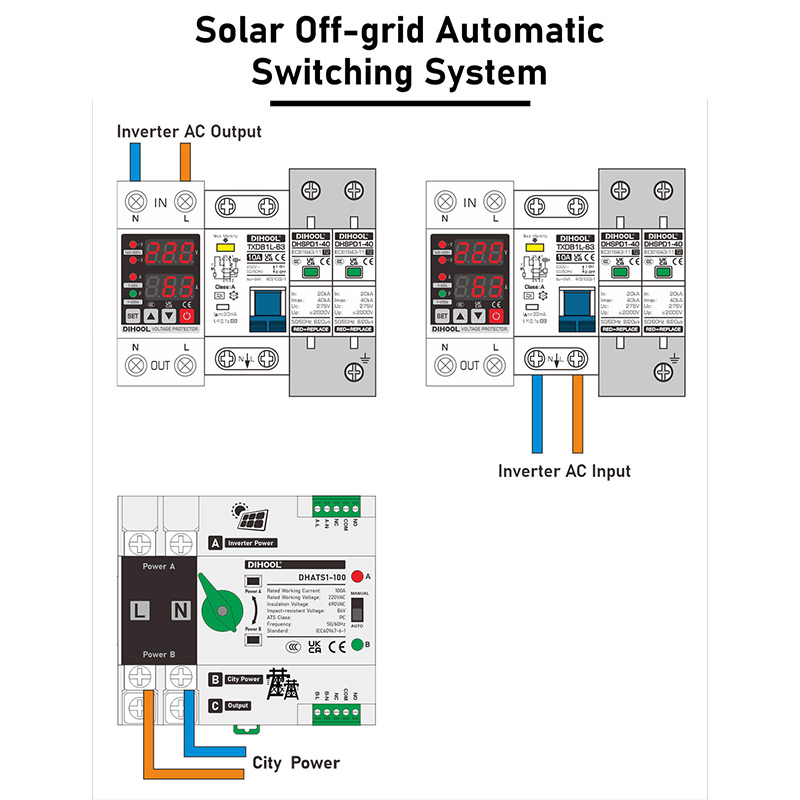

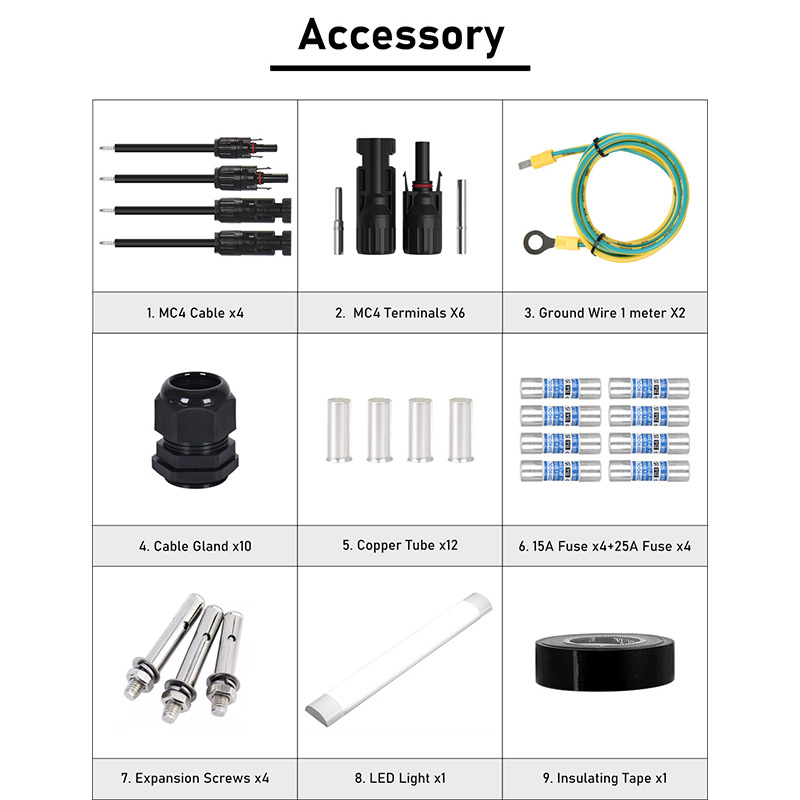

PVACD-304-2S2 PV Grid Connected Integrated Box

Current:
  • 10A
  • 15A
  • 20A
  • 25A
  • 30A
  • Customized
Quantity:

Product Features

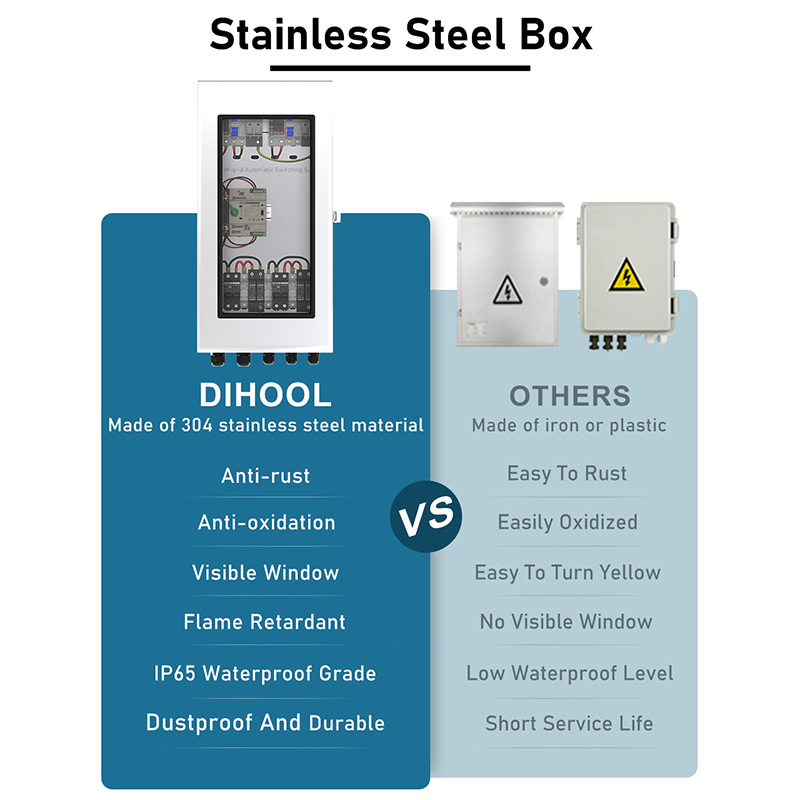

- The box is made of 304 stainless steel material, which enables the photovoltaic grid integration box to operate stably for a long time in harsh environmental conditions and extend its lifespan.
- Overvolt

PV Combiner Box
Technical Data
Download

ELECTRICAL PARAMETERS

AC ELECTRICAL TECHNICAL PARAMETERS
ModelPVACD304-2S2
Voltage Protector Parameters
Voltage Setting Range (U)AC 140~300V or AC 70~160V
Current Setting Range (A)1~63A
Delay Time Setting Range1s ~ 500s
Voltage Error Range±5V
>U And <U Trip Delay Time0.1-30s
Circuit Breaker Parameters
Voltage220V / 110V
Rate Current63A
Residual Current Protection TypeElectronic
Residual Current Working TypeType A
Rated Residual Operated Current30mA
AC Lightning Protector Parameters
Test CategoryClass II protection 8/20μs
Nominal Discharge Current20kA
Maximum Discharge Current40kA
Maximum Continuous Working Voltage275V
Number Of Poles2P
Lightning Protection InstructionsGreen is normal, Red needs to replace the module
Structural FeaturesPlug-in modules - Replaceable
DC ELECTRICAL TECHNICAL PARAMETERS
ModelPVACD304-2S2
DC Electrical Parameters
Input Voltage12-1000V
Input Current15/25A
Input Array2
Breaking Capacity4000A
Output Circuit Breaker2P
Output String2
DC Lightning Protector Parameters
Test CategoryClass II protection 8/20μs
Nominal Discharge Current20kA
Maximum Discharge Current40kA
Voltage Protection Level4kV
Maximum Continuous Working Voltage1000V
Number Of Poles2P
Lightning Protection InstructionsGreen is normal, Red needs to replace the module
Structural FeaturesPlug-in modules - Replaceable

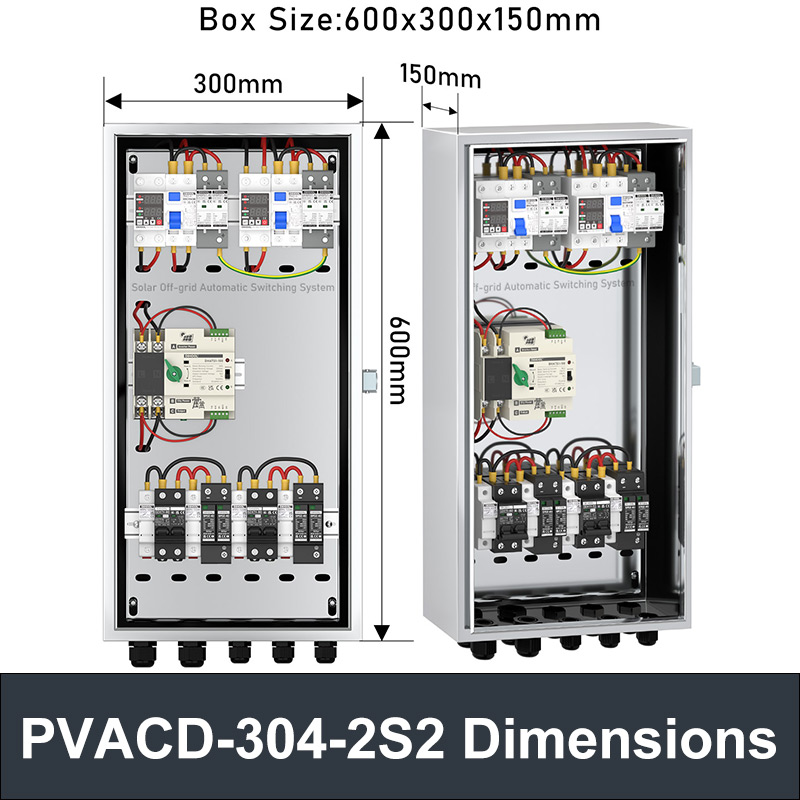

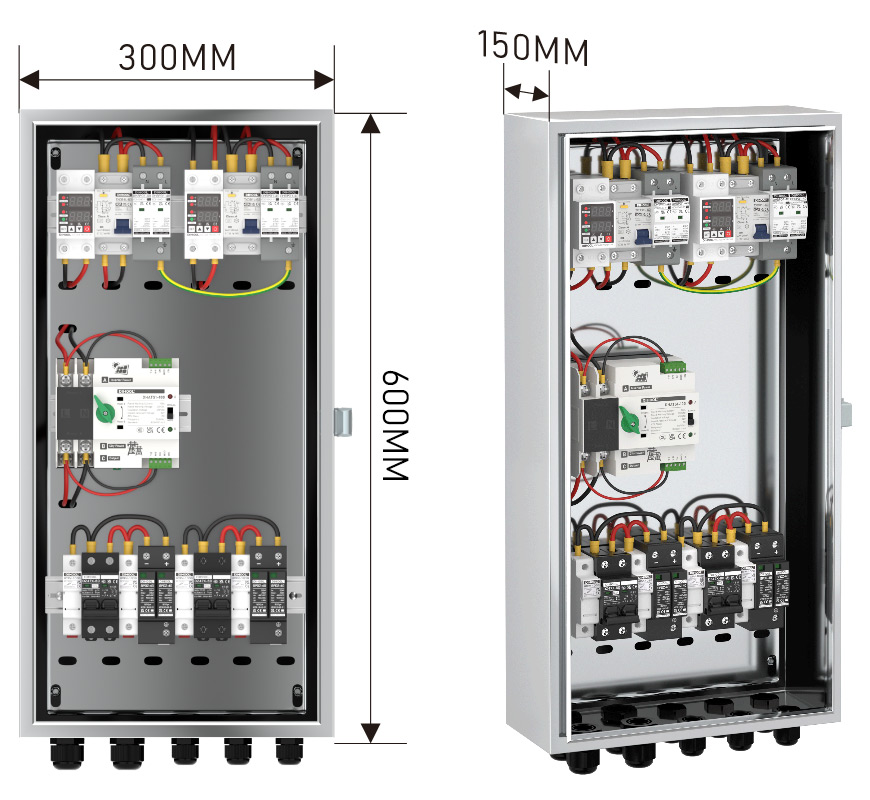

OUTLINE DIMENSIONS DRAWING
