Protective: The surge protector can effectively protect your devices from electrical hazards, voltages, and other potential damage caused by overheating.
Nice quality: The surge protector is made of high-quality abs material, which has good heat dissipation performance and can be used for a long time.
Easy to install: The surge protector is easy to install, just peel off the protective film on the back of the device and stick it on the wall.
| Model | DHSPD1 |
| Standard | IEC EN50539-11; GB18802.11 |
| Protection Grade | T2, Class II |
| Max Continuous Working Voltage Uc | AC275V/AC385V |
| Nominal Discharge Current In 8/20μs | 20KA |
| Max Discharge Current In 8/20μs | 40KA |
| Lightning Impulse Current 10/350μs | 12.5KA |
| Voltage Protection Level Up | ≤4KV |
| Number of Poles | 2P / 3P / 4P |
| Response Time Ta | ≤25ns |
| Connecting Cable | ≥4mm², Ground Wire ≥6mm² |

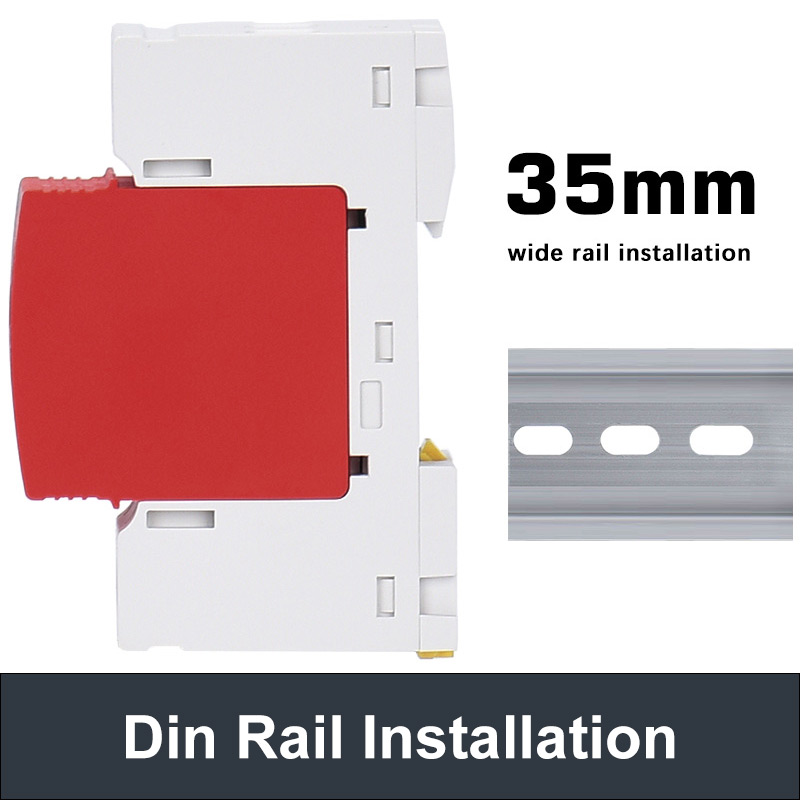

| Method of Installation | 35mm DIN Rail |
| Matched Fuse or Circuit Breaker | ≥32A |
| Operating Temperature Range | -40°C ~ +80°C |
| Housing Color Module/Base | Grey/White |
| Protection Class | IP20 |
| Tightening Torque | 3.0N.m |
| Terminal Connection Type | Phillips Screws |
| Certificate | CE, ISO9001-2015 |

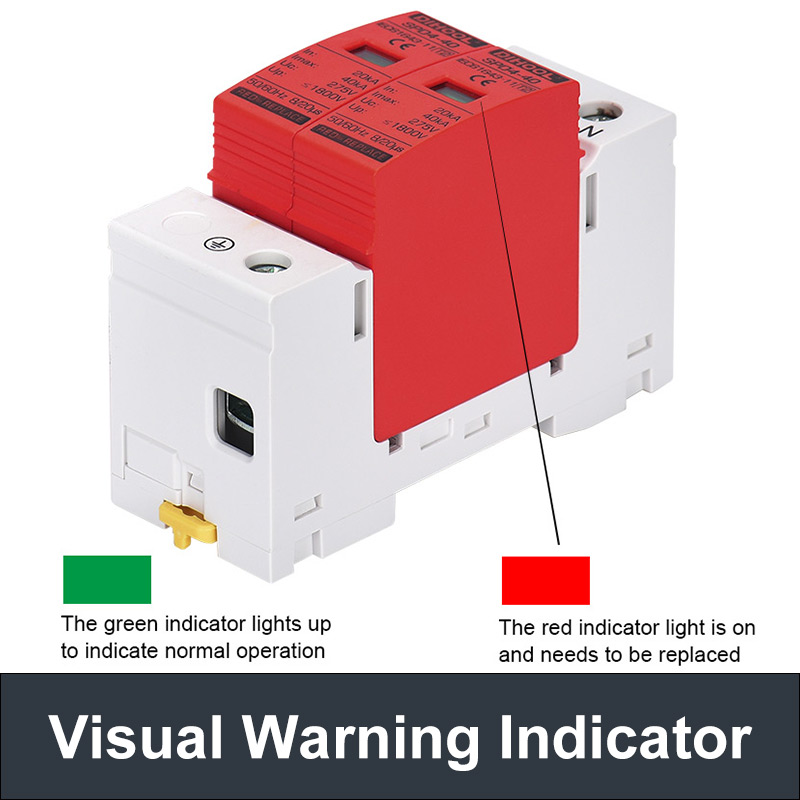

| Working Status Indicator Window | Green (working well), Red (malfunction, product or module must be replaced) |
