| Model | HASPD-MC4-2S |
| Electrical Parameters |

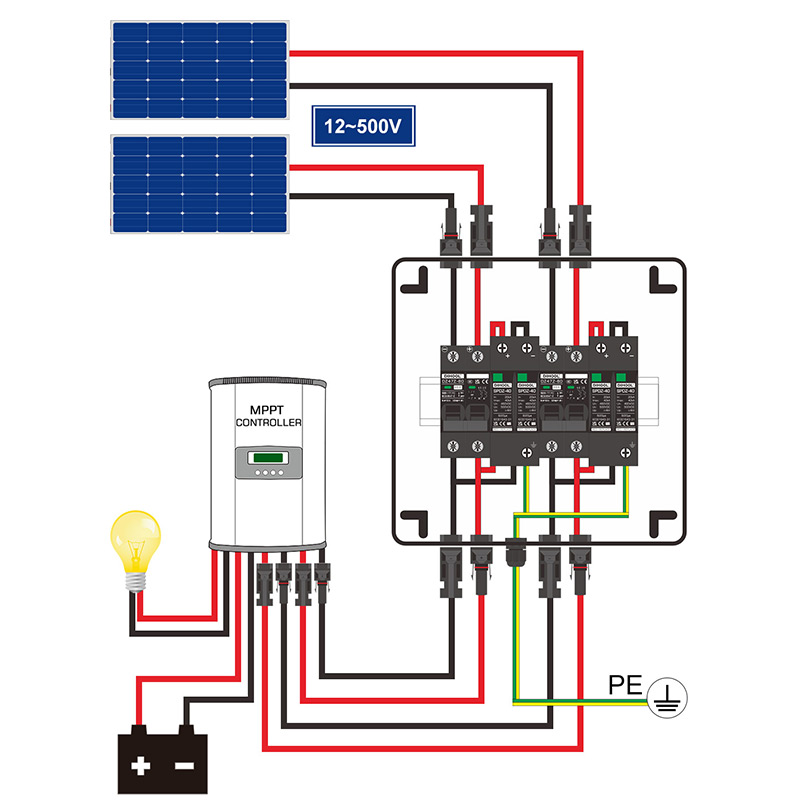

| Input Voltage | 12-500V | 12-1000V |
| Input Current | 10A/16A/20A/25A/32A/40A/63A |
| Input Array | 2 | 2 |
| Breaking Capacity | 6000A | 3000A |
| Output Circuit Breaker | 2P | 2P |
| Output String | 2 | 2 |
| Lightning Protector Parameters |
| Test Category | Class II protection 8/20μs |
| Nominal Discharge Current | 20kA |
| Maximum Discharge Current | 40kA |
| Voltage Protection Level | 4kV | 4kV |
| Maximum Continuous Working Voltage | 500V | 1000V |
| Number Of Poles | 2P | 2P |
| Lightning Protection Instructions | Green is normal, red needs to replace the module |
| Structural Features | Plug-in modules - replaceable |
| Box Parameters |

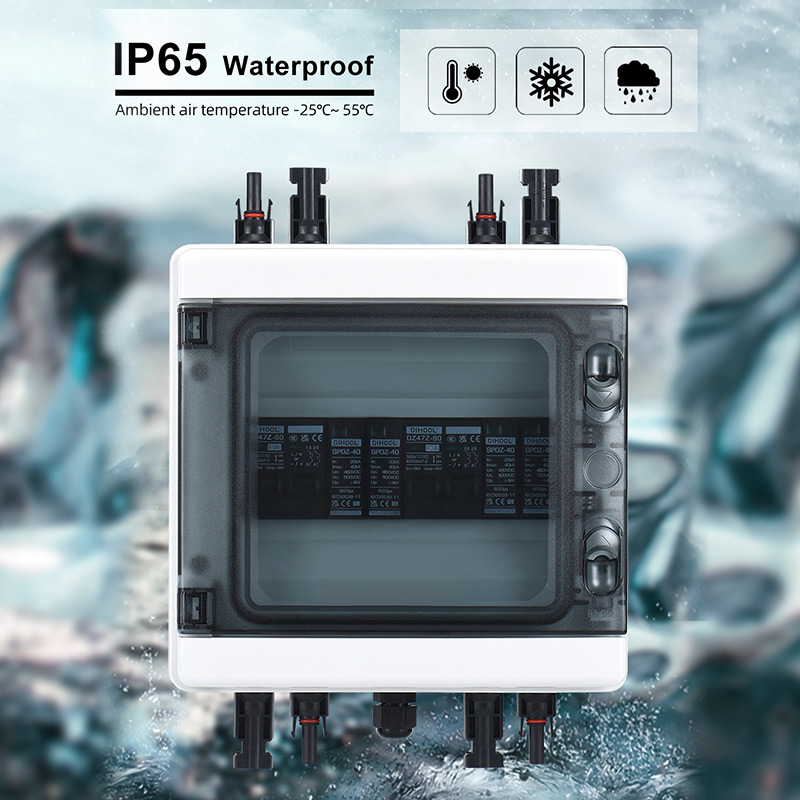

| Protection Class | IP65 |

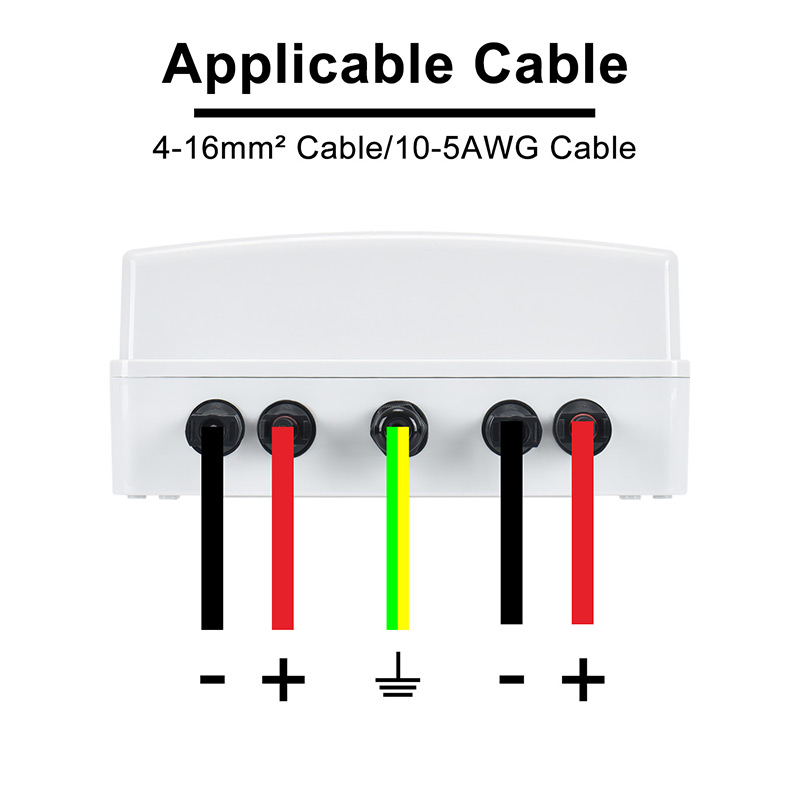

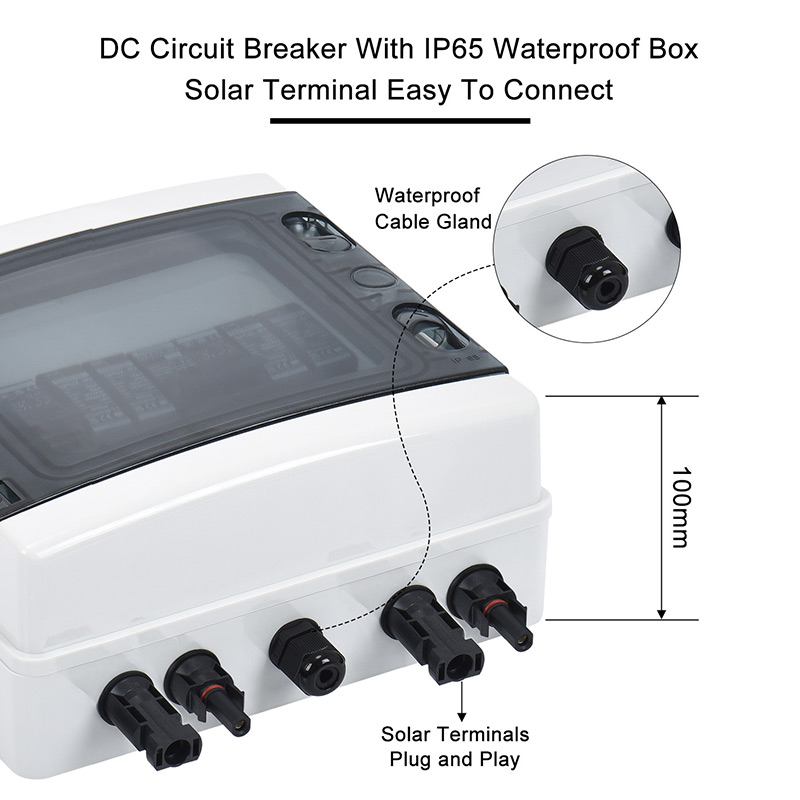

| Connector | MC4 Terminals |
| Box Material | Flame Retardant, PC+ABS Plastic, UV-Proof |
| Installation Method | Wall-mounted |
| Operating Temperature | -25°C~+55°C |
| Altitude | 2000 Meter |
| Allowable Relative Humidity | 0~95%, no condensation |

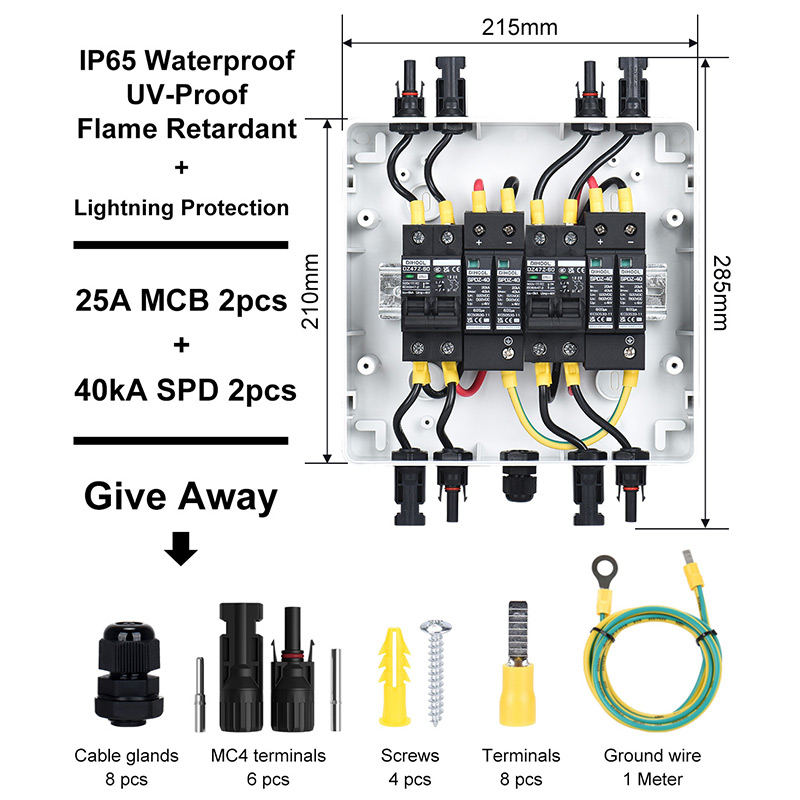

| Box Size(MM) | 215*210*100 | 215*210*100 |
