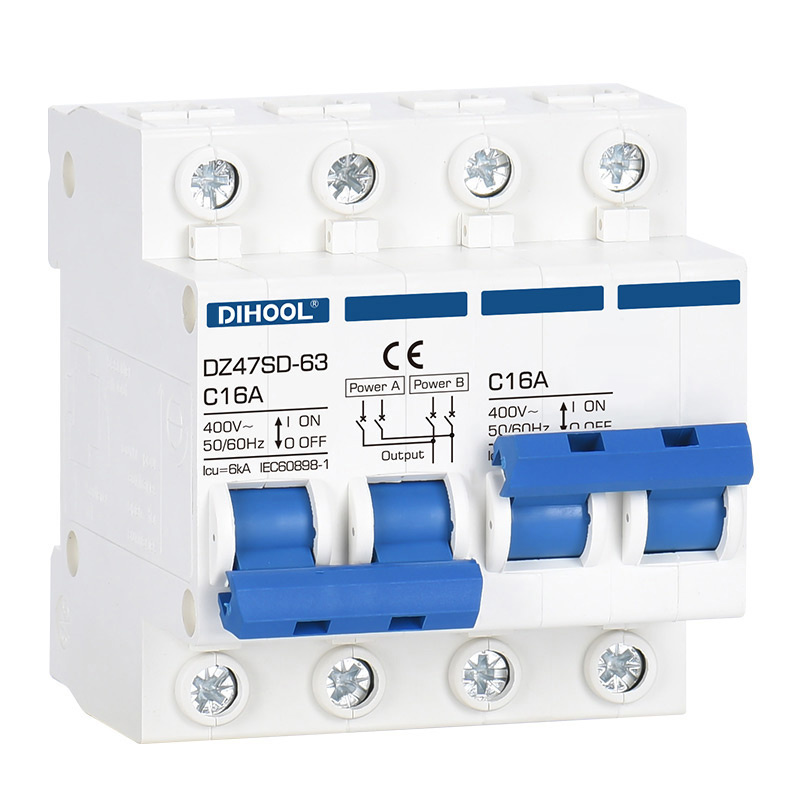

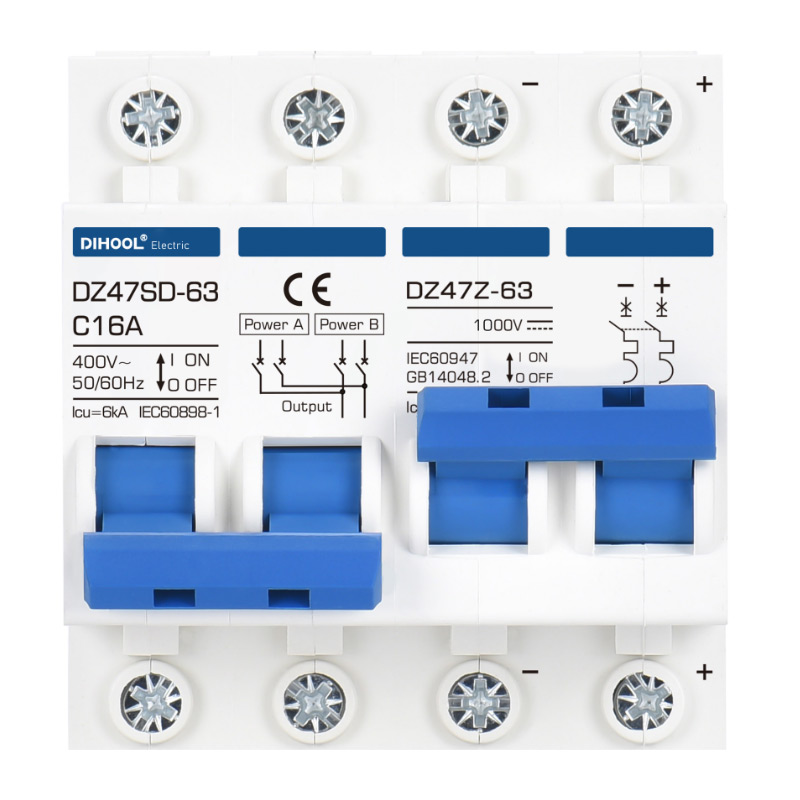

| Model | DZ47SD |
| Rated Current | 6A.,10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A |

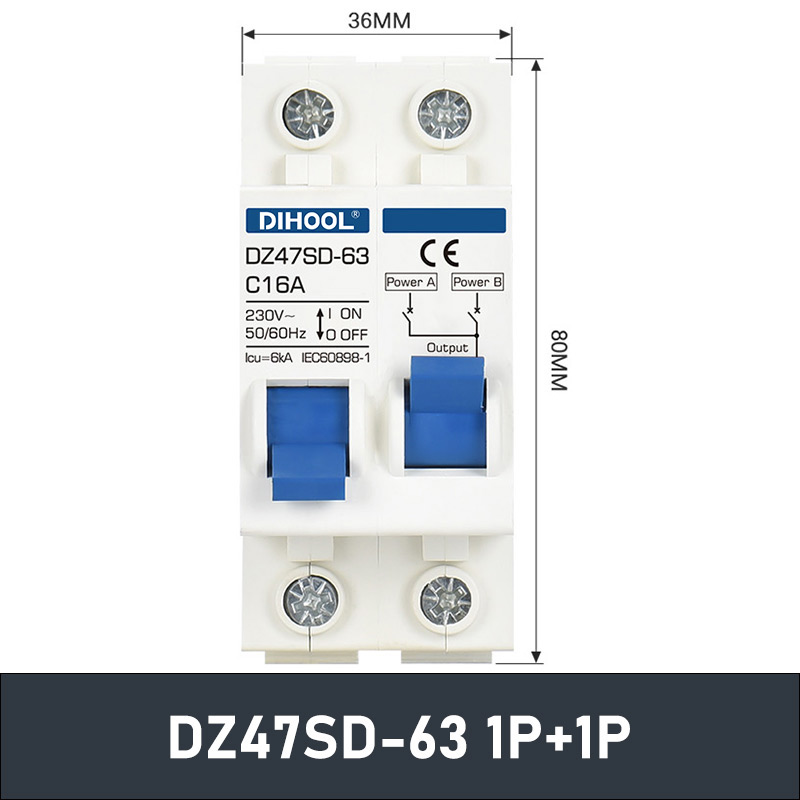

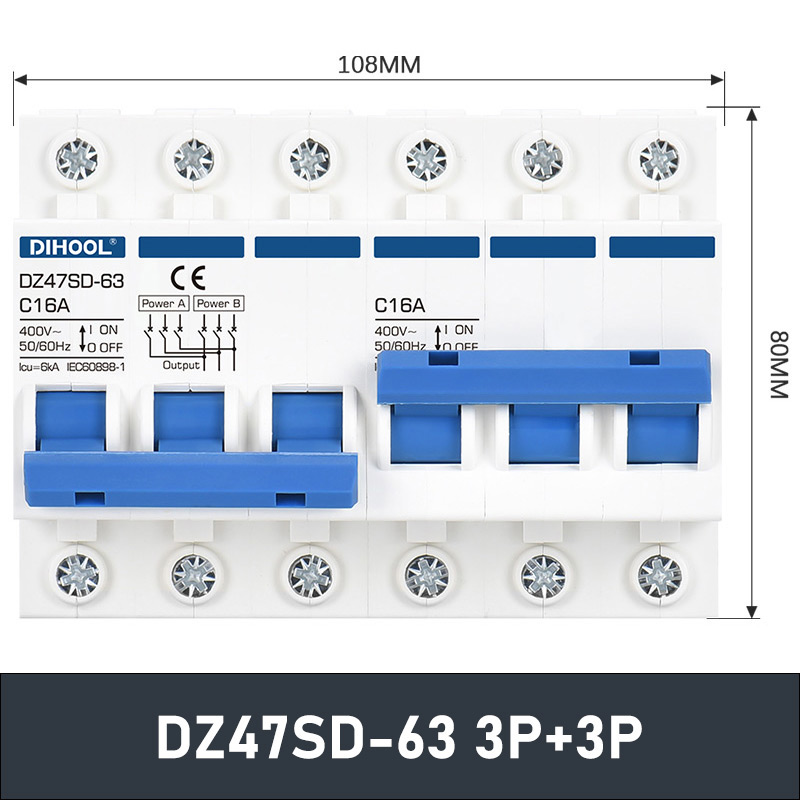

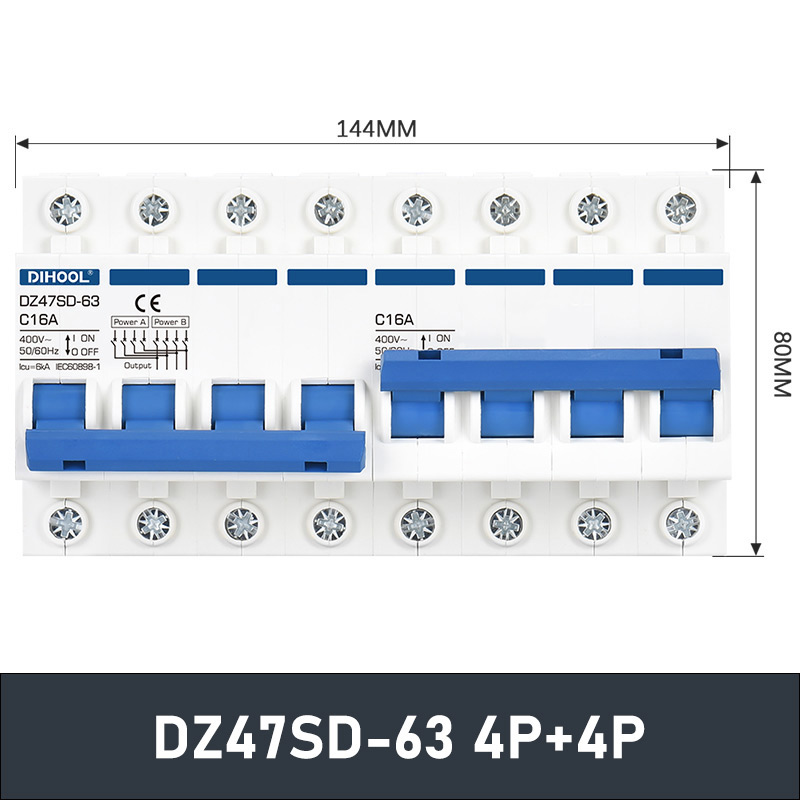

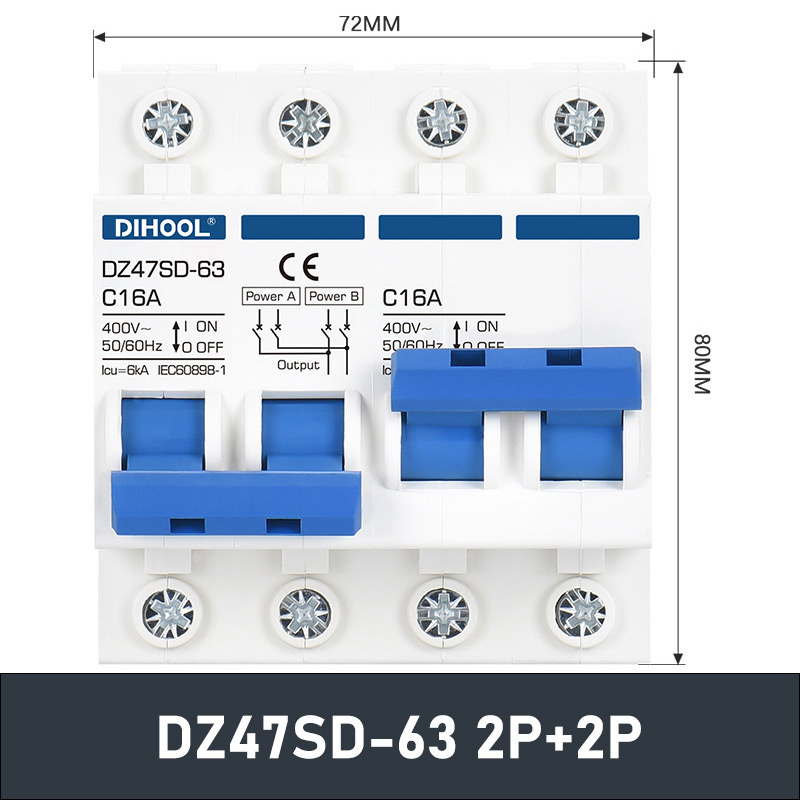

| Poles | 1P,1P+1P,2P,2P+2P,3P,3P+3P,4P,4P+4P |
| Rated Voltage Ue | AC230V/DC400V |
| Rated Insulation Voltage | 660V |
| Indication Window | Green Window(Disconnected),Red Window(Closed) |
| Rated Breaking Capacity | 4500A/6kA |
| Protection Class | IP20 |
| Thermo-Magnetic Release Characteristic | C-Curve (5-10ln).D-Curve(10-14ln) |
| Electrical Life | 4000 |
| Mechanical Life | 20000 |
| Reference Temperature For Setting Of Thermal Element | 30°C |
| Ambient Temperature | -5°C~+40°C |
| Terminal Connection Type | Phillips Screws |
| Adapter Cable | 6-32A 1-25mm216-3AWG |
| Tightening Torque | 3.0N.M |
| Combination With Accessories Auxiliary Contact | |
| Auxiliary Contact | Yes |
| Alarm Contact | Yes |
| Shunt Release | Yes |
| Under Voltage Release | Yes |
