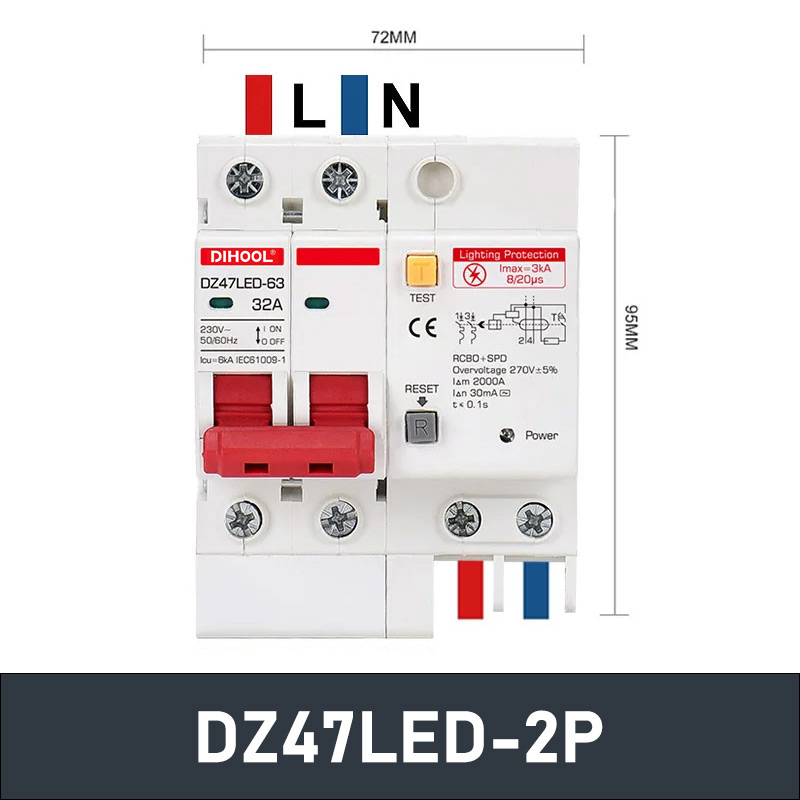

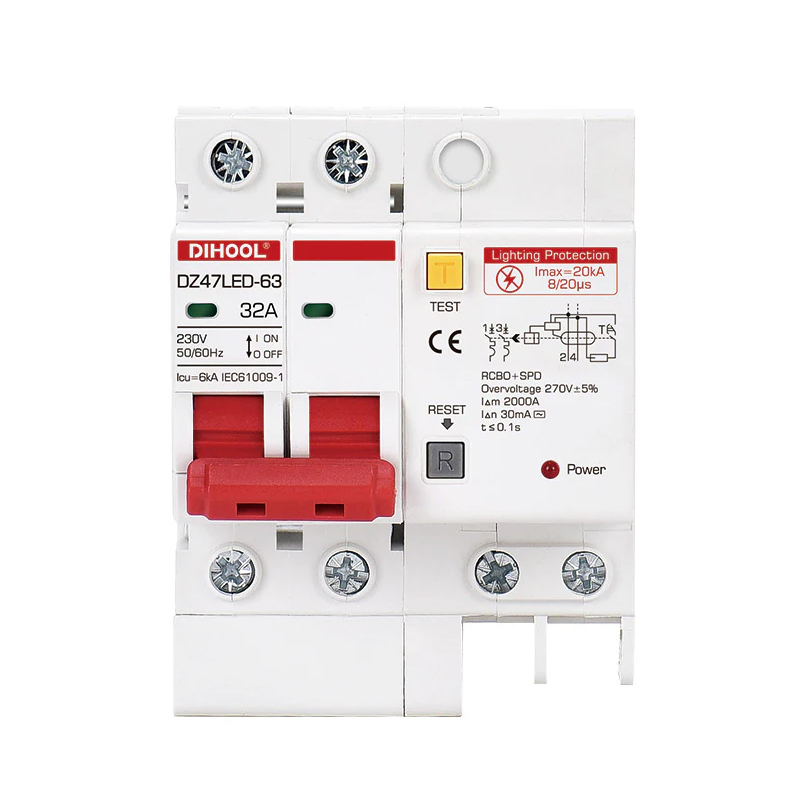

| Model | DZ47LED |
| Poles | 2P+PE (L N PE) |
| Rated Current | 10A,16A,20A,25A,32A,40A,50A,63A |
| Rated Voltage Ue | 120V/240V AC |
| Insulation Volage Ui | 500V |
| Rated Impulse Withstand Voltage (1.2/50) Uimp | 4kV |
| Rated Breaking Capacity (Ics) | 6kA |
| Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV |
| Residual Leakage Tripping Current | 30mA/300mA |
| Thermo-Magnetic Release Characteristic | C-Curve (5-10In), D-Curve (10-14In) |
| Electrical Life | 4000 |
| Mechanical Life | 20000 |
| Installation | 35MM DIN Rail or M3 Screw Side Mount |
| Reference Temperature For Setting Of Thermal Element | 30°C |
| Ambient Temperature | -5°C ~ +40°C |
| Terminal Connection Type | Phillips Screws |
| Adapter Cable | 6-63A 1.5-16mm2 16-5AWG |
| International Standard | IEC61009-1 |
| Tightening Torque | 3.0N.m |
| Lightning Protection Parameters | |
| The maximum flow Imax (kA) | 20 |
| Nominal flux In (kA) | 10 |
| Response time t (ns) | ＜25 |
| The ground terminal links the stranded copper conductors | 6mm² |
