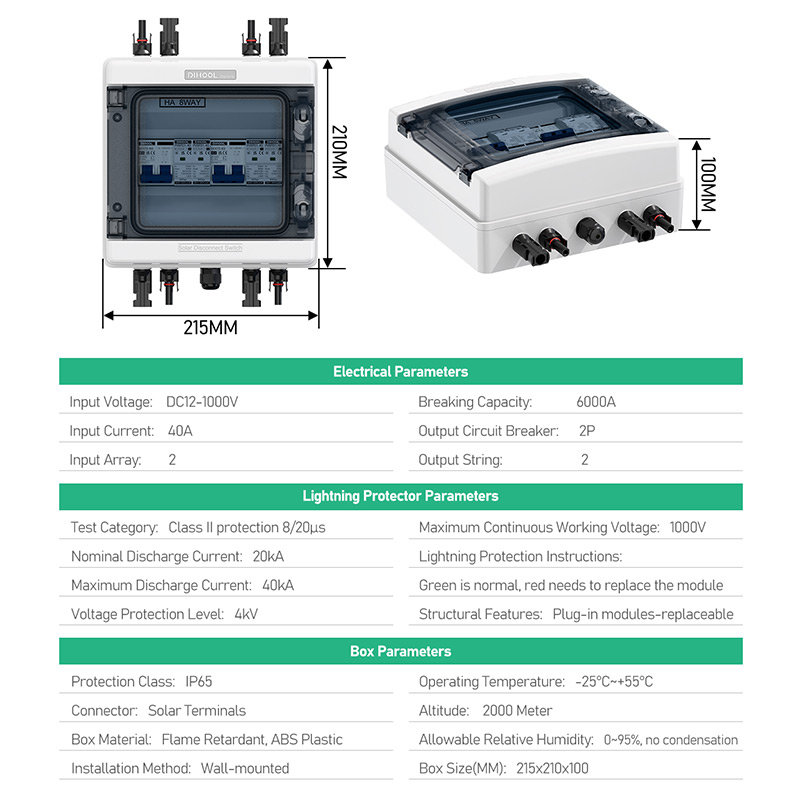

| Electrical Parameters | |
| Input Voltage | DC12-1000V |
| Input Current | 40A |
| Input Array | 2 |
| Breaking Capacity | 6000A |
| Output Circuit Breaker | 2P |
| Output String | 2 |

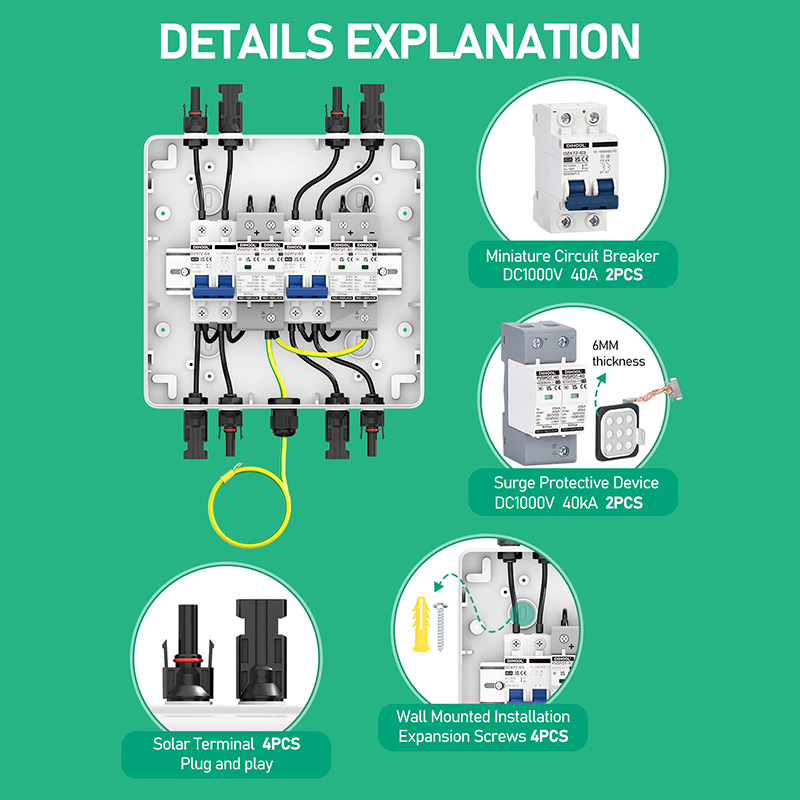

| Lightning Protector Parameters | |
| Test Category | Class Ⅱ Protection 8/20μs |
| Nominal Discharge Current | 20kA |
| Maximum Discharge Current | 40kA |
| Voltage Protection Level | 4kV |
| Maximum Continous Working Voltage | 1000V |
| Lightning Protection Instructions | Green is normal, red needs to replace the module |

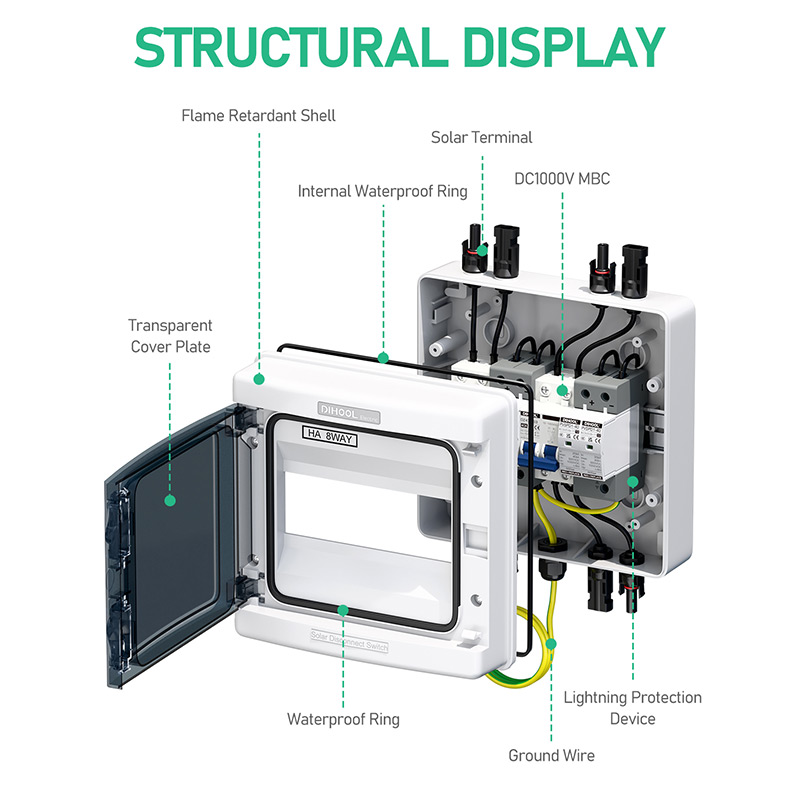

| Structural Features | Plug-in modules-replaceable |
| Box Parameters | |
| Protection Class | IP65 |
| Connector | Solar Terminals |
| Box Material | Flame Retardant, ABS Plastic |

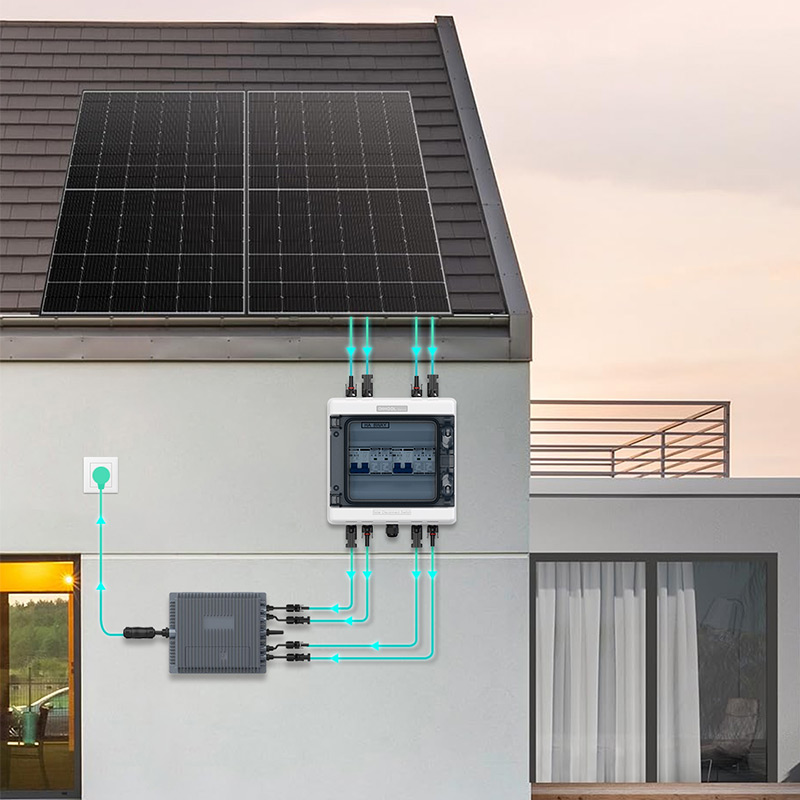

| Installation Method | Wall-mounted |
| Operating Temperature | -25℃~+55℃ |
| Altitude | 2000M |
| Allowable Relative Humidity | 0~95%, no condensation |

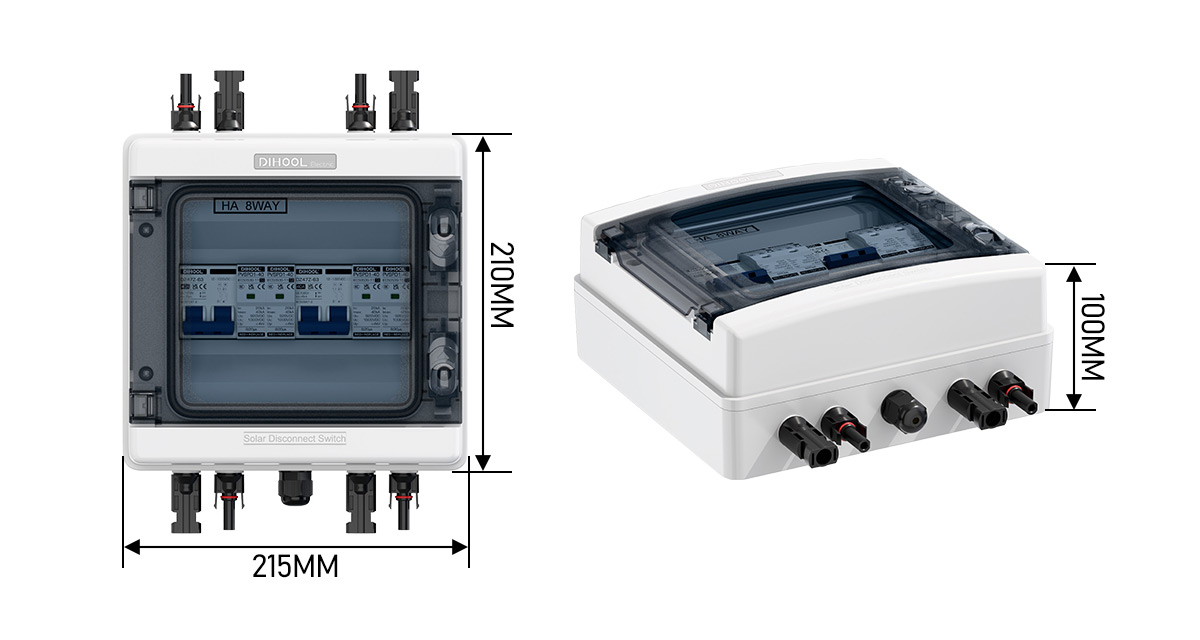

| Box Size (MM) | 215×210×100 |
