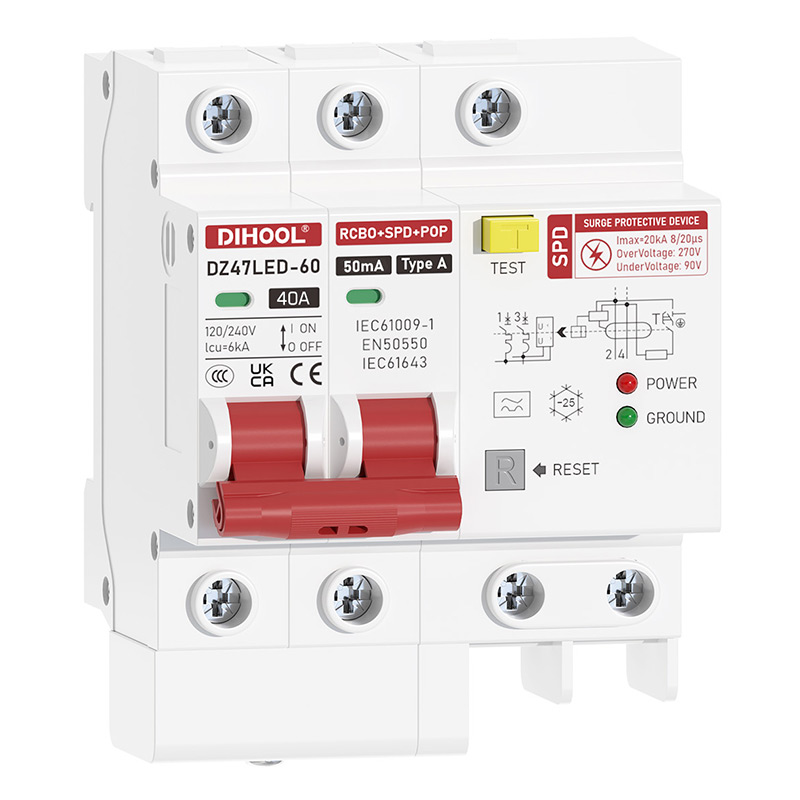

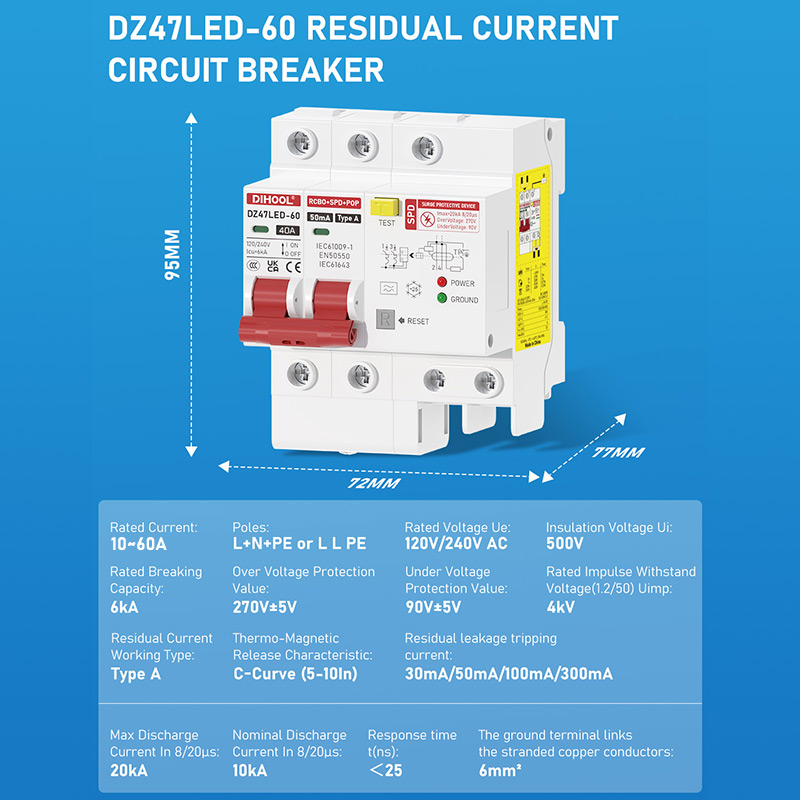

| Product Model | DZ47LED-LNE |
| Rated Current | 10A 15A 20A 25A 30A 40A 50A 60A |
| Poles | L+N+PE or L L PE |
| Rated Voltage Ue | 120V/240V AC |
| Insulation Voltage Ui | 500V |
| Rated Breaking Capacity | 6kA |
| Over Voltage Protection Value | 270V±5V |
| Under Voltage Protection Value | 90V±5V |
| Rated Inpulse Withstand Voltage (1.2/50) Uimp | 4kV |
| Residual Current Working Type | Type A |
| Thermo-Magnetic Release Characteristic | C-Curve (5-10In) |
| Residual Leakage Tripping Current | 50mA/50mA/100mA/300mA |
| Max Discharge Current In 8/20μs | 20kA |
| Nominal Discharge Current In 8/20μs | 10kA |
| Response Time t (ns) | <25 |
| The Ground terminal links the stranded copper conductors | 6mm² |
