| Electrical Parameters | |
| Rated Voltage | 120V AC |
| Rated Current | 40A |
| Poles | 1P+N |
| Insulation Voltage Ui | 500V |
| Rated Residual Operated Current | 30mA |
| Rated Breaking Capacity | 4.5kA |
| Ambient Temperature | -5℃~+40℃ |
| Tripping Characteristics | C-Type Curve |

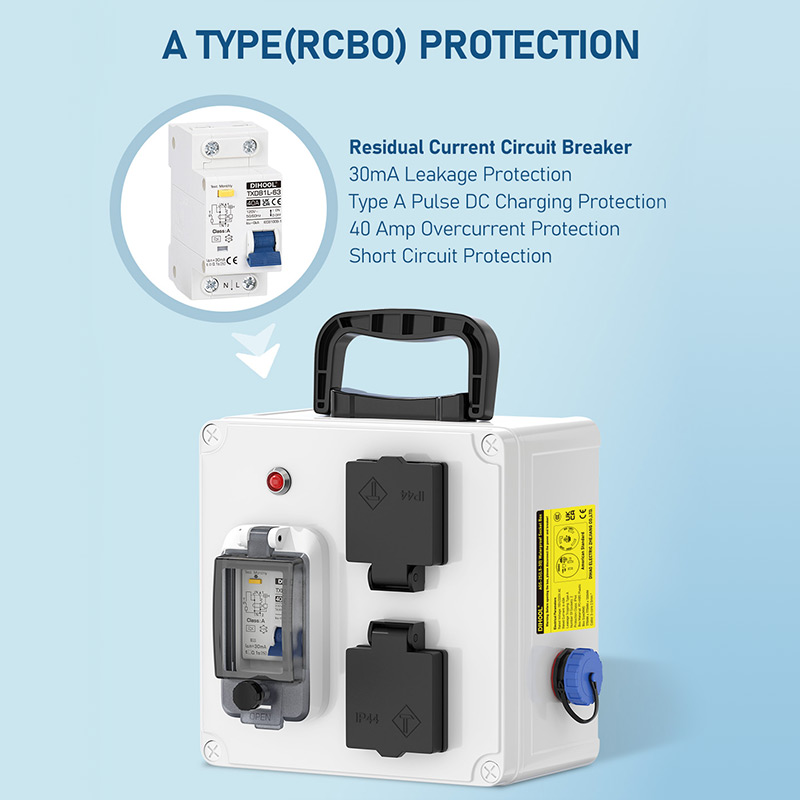

| Protection Type | A Type (RCBO) |
| Box Parameters | |
| Protection Class | IP44 |
| Box Material | PC+ABS Plastic |

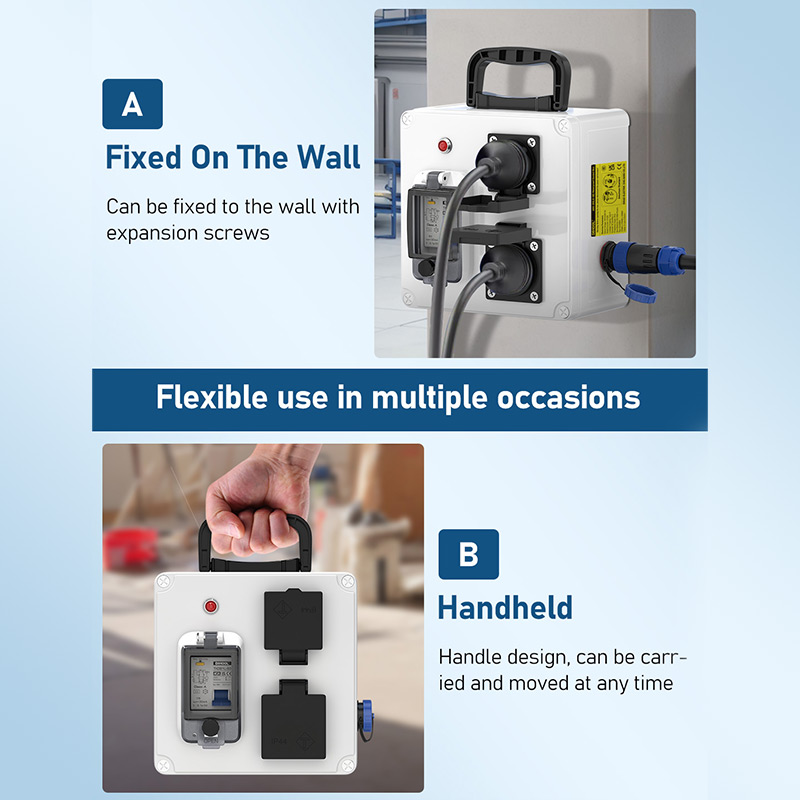

| Installation Method | Wall-mounted |
| Operating Temperature | -25℃~+55℃ |
| Altitude | 2000M |
| Allowable Relative Humidity | 0~95%, no condensation |
| Box Size (MM) | 175×175×130 |

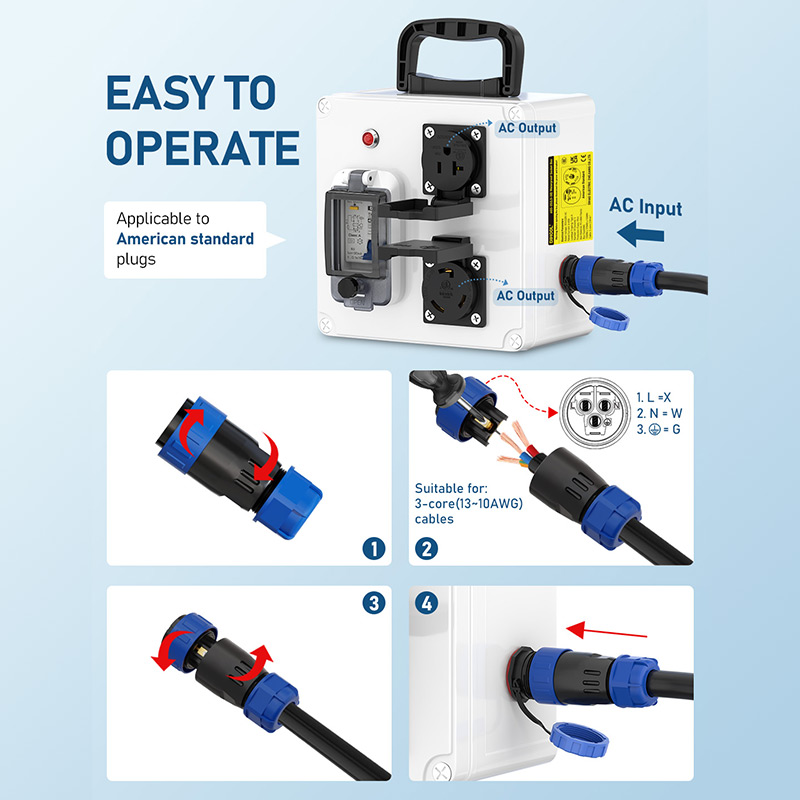

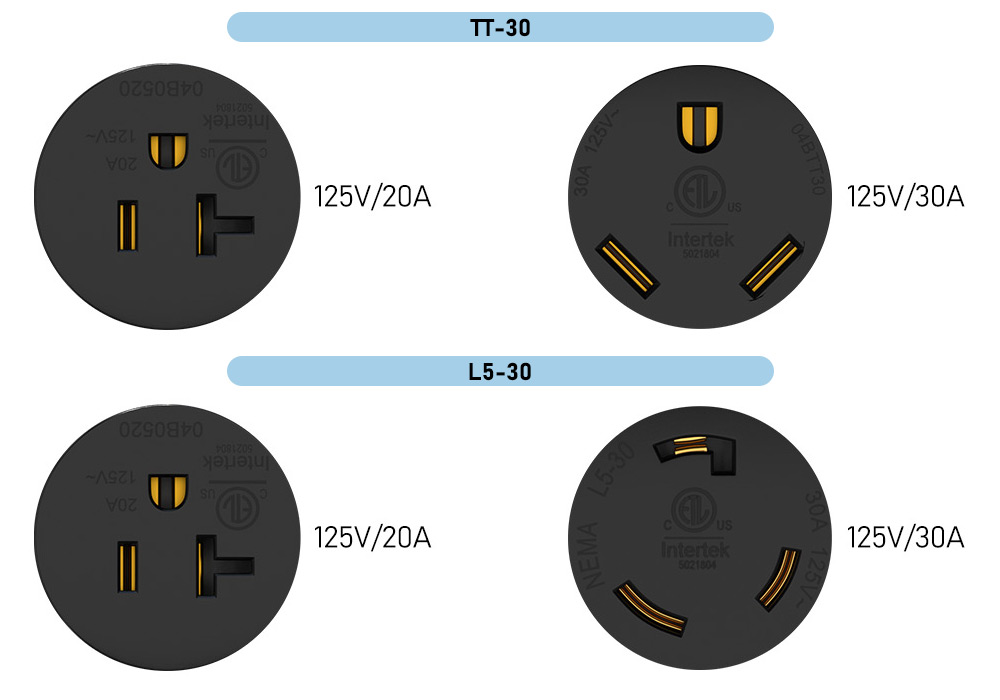

| American Standard Socket | |
 | |
