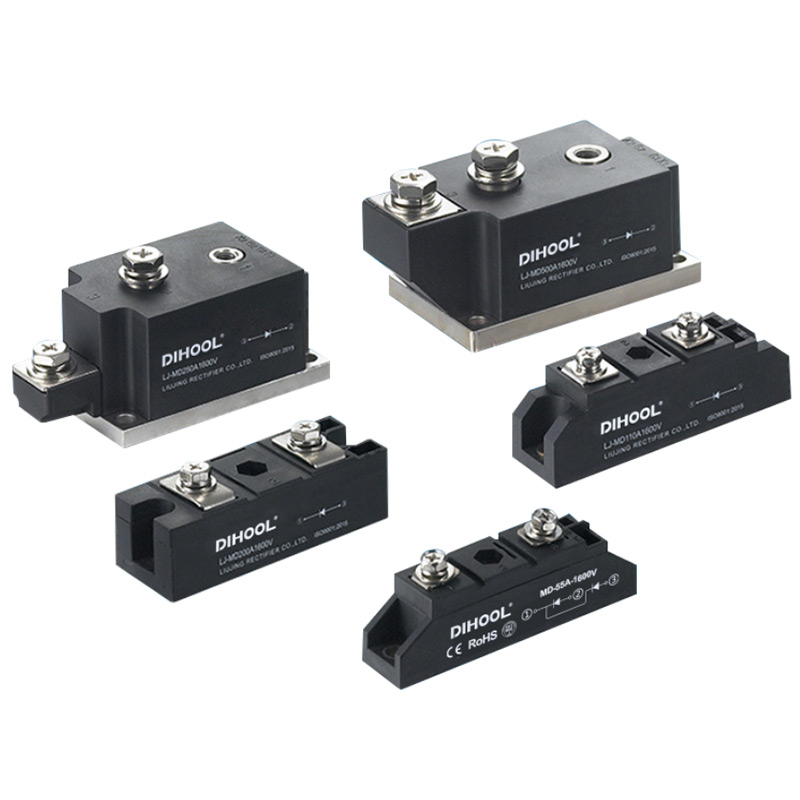

MD Rectifier New Energy Photovoltaic Anti-Reverse Diode

Current:

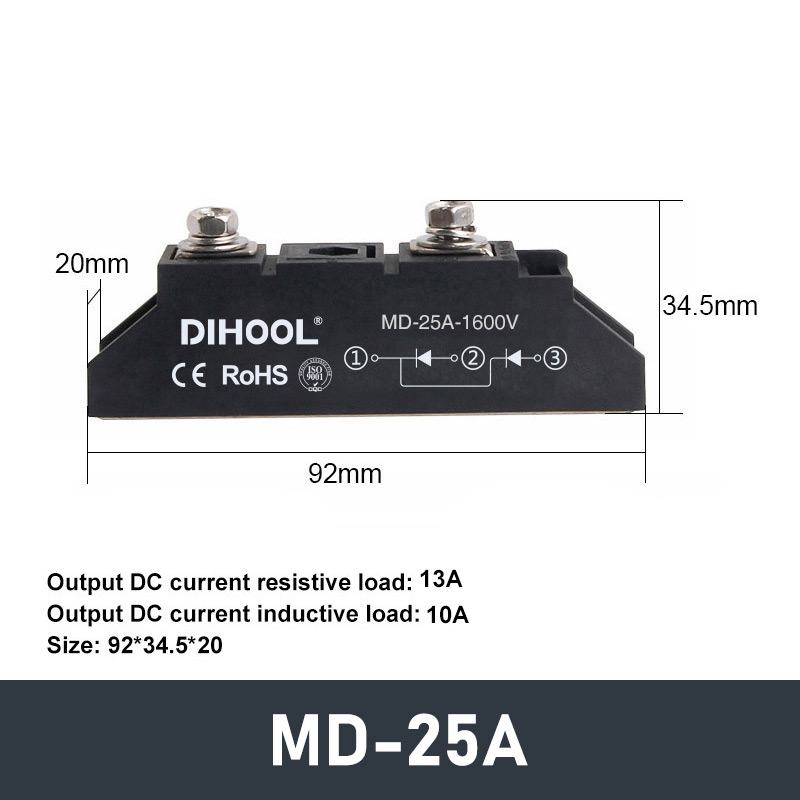

  • 25A
  • 40A
  • 55A
  • 70A
  • 90A
  • 110A
  • 160A
  • 200A
  • 300A
  • 600A
  • 800A
  • 1000A
Quantity:

Application

- Inverter DC power supply for equipment; AC and DC motor control; Electric Welding Machine; Various rectifier power supplies; Battery charging and discharging;Motor soft start.


AC Breaker & Box
Technical Data
Download

Product Parameters

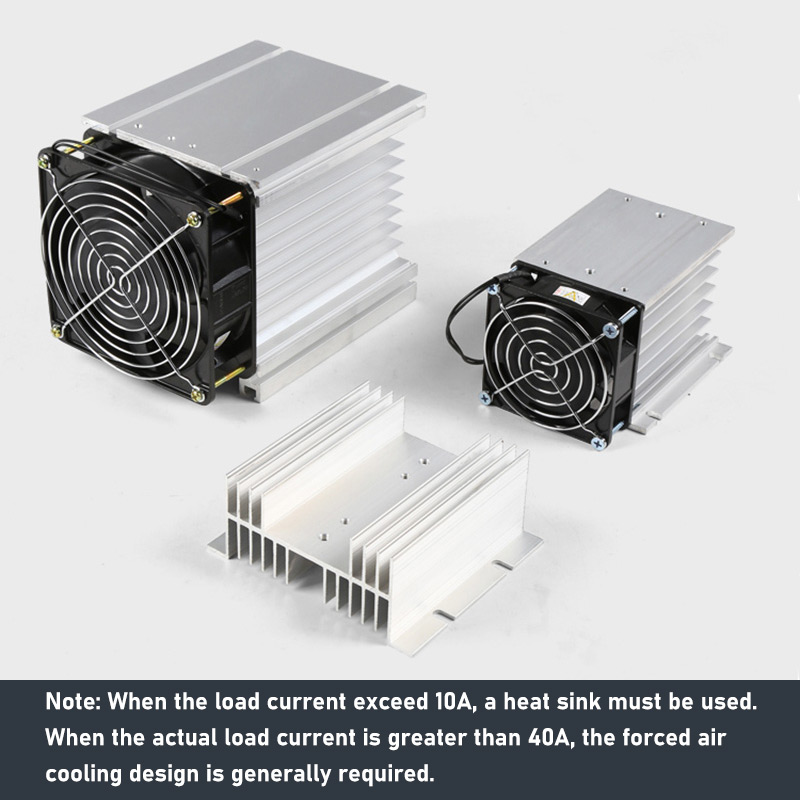

Model NumberOutput DC CurrentEquipped With A RadiatorShape
Resistive loadInductive loadSingle PackMany
MD 40A20A16A125*110*50140*44*300
 8 Combiner Boxes		101F
MD 55A28A22A140*44*300
 8 Combiner Boxes		101F

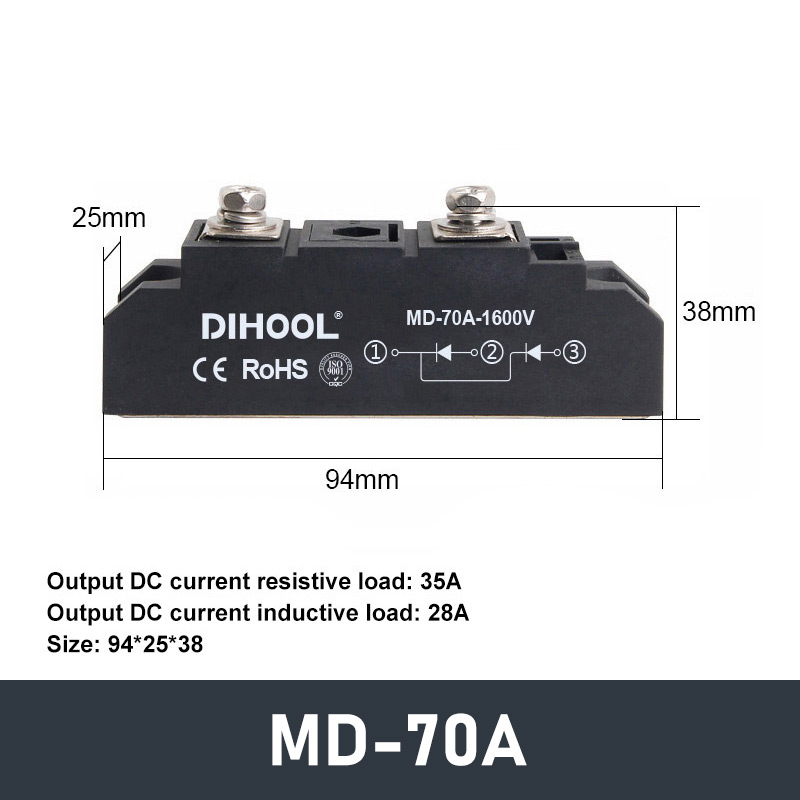

MD 70A35A28A140*44*350
 8 Combiner Boxes		201F
MD 90A45A36A140*44*350
8 Combiner Boxes		201F

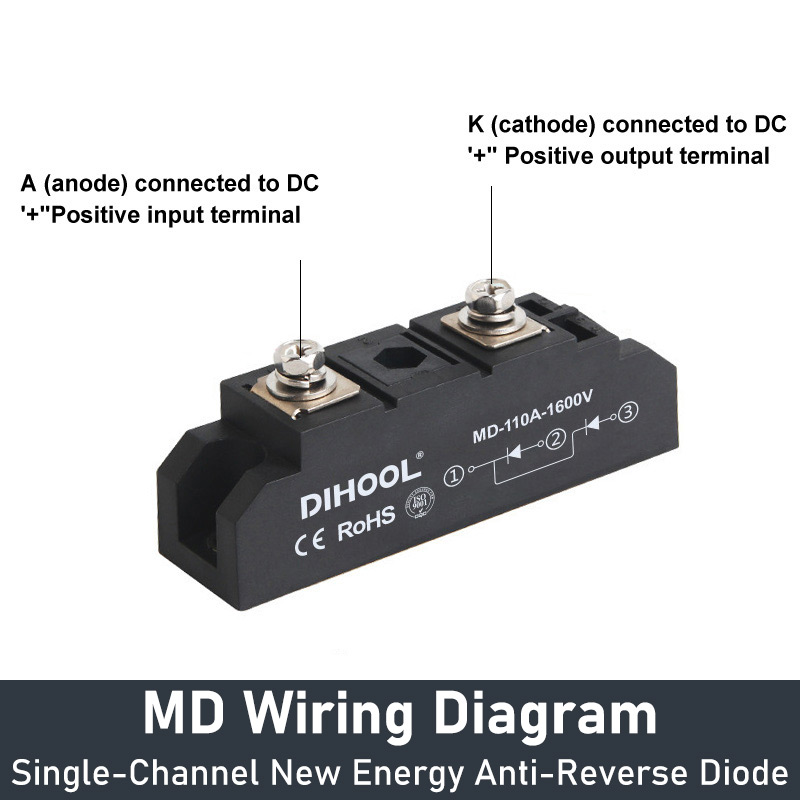

MD 110A55A44A140*44*350
8 Combiner Boxes		201F

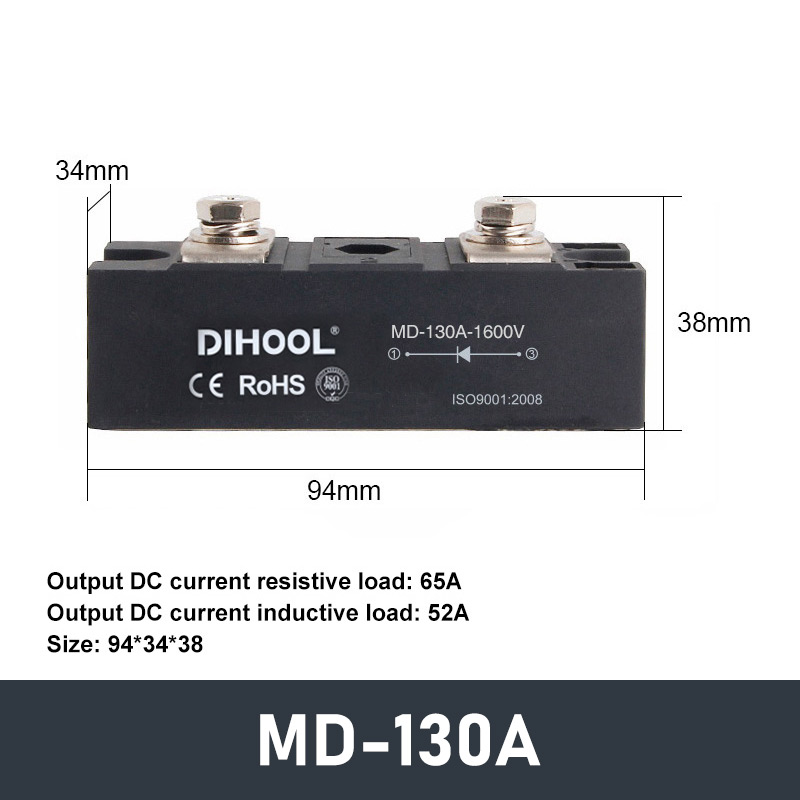

MD 130A65A52A150*100*80According to reality
 Technical Support		301F
MD 160A80A64A301F
MD 200A100A80A301F

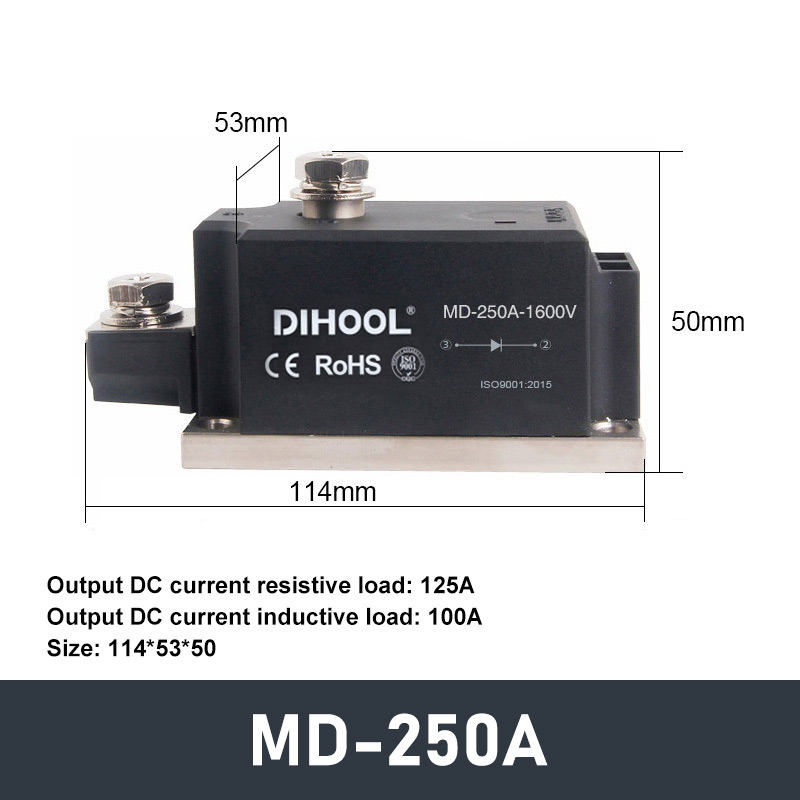

MD 250A125A100A110*125*135 With Fan401F
MD 300A150A120A110*125*135 With Fan401F
MD 400A200A160A150*125*135 With Fan501F
MD 500A250A200A150*125*135 With Fan501F
MD 600A300A240A150*141*135 With Fan601F
MD 800A400A320A200*125*135 With Fan601F/701F/107B
MD 1000A500A400A200*125*135 With Fan701F/107B

Outline Dimension Drawing
